Name:ATmega8A
Short description:8-bit AVR Microcontroller

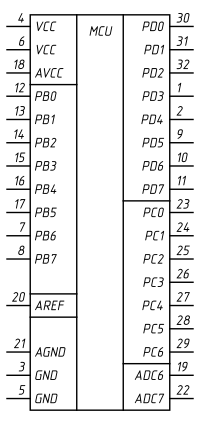

Symbol:

PDIP-28N

VendorPart number / Specifications
MicrochipATmega8A-PN
MicrochipATmega8A-PU

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
MicrochipATmega8A-AN
MicrochipATmega8A-ANR
MicrochipATmega8A-AU
MicrochipATmega8A-AUR

VQFN-32 (JEDEC MO-220, VHHD-2, T2)

VendorPart number / Specifications
MicrochipATmega8A-MN
MicrochipATmega8A-MNR
MicrochipATmega8A-MU
MicrochipATmega8A-MUR
