Category:
Name:ATmega16M1
Short description:8-bit AVR Microcontroller

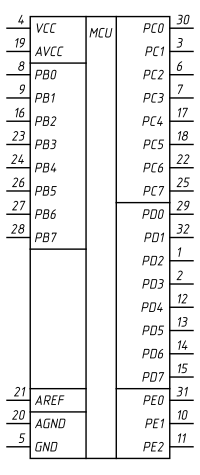

Symbol:

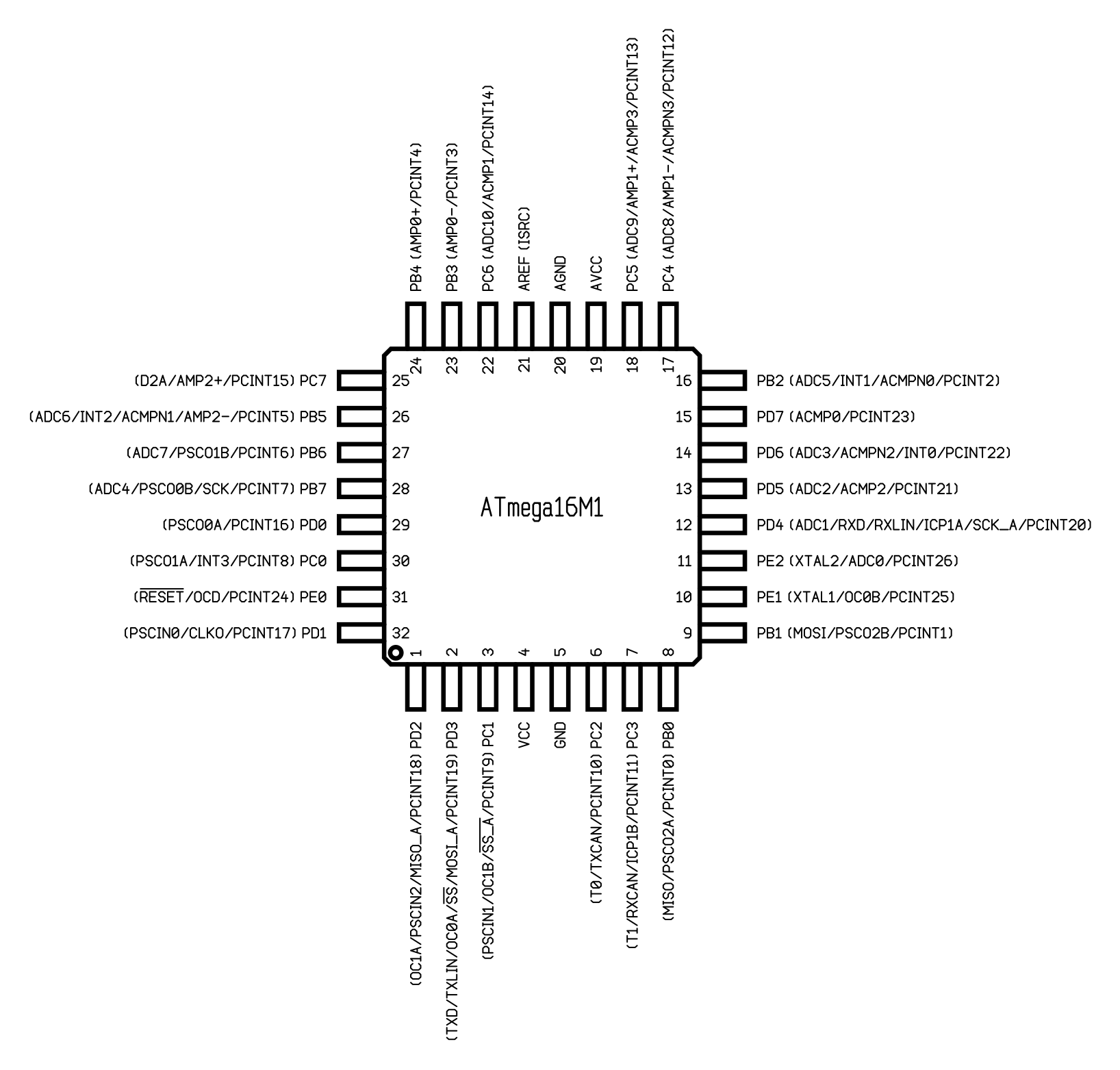

Pinout: Default Style: GOST

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
AtmelMEGA16M1-15AZ
