Category:
Name:ATmega165A
Short description:8-bit AVR Microcontroller

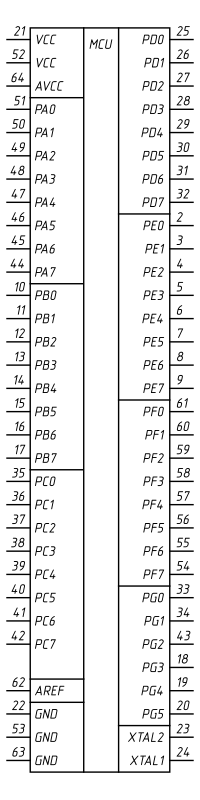

Symbol:

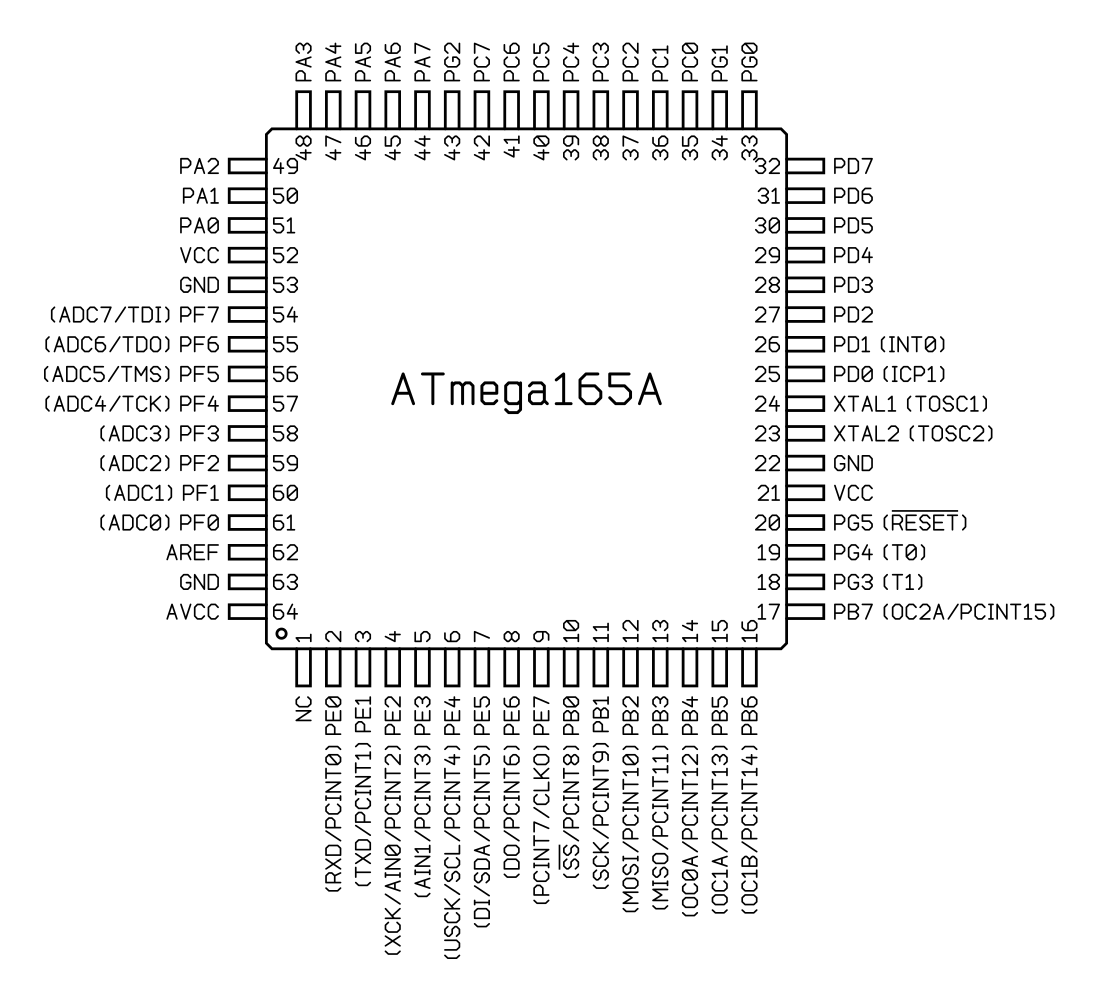

TQFP-64 (JEDEC MS-026-AEB)

VendorPart number / Specifications
AtmelATmega165A-AN
AtmelATmega165A-ANR
AtmelATmega165A-AU
AtmelATmega165A-AUR
