Category:

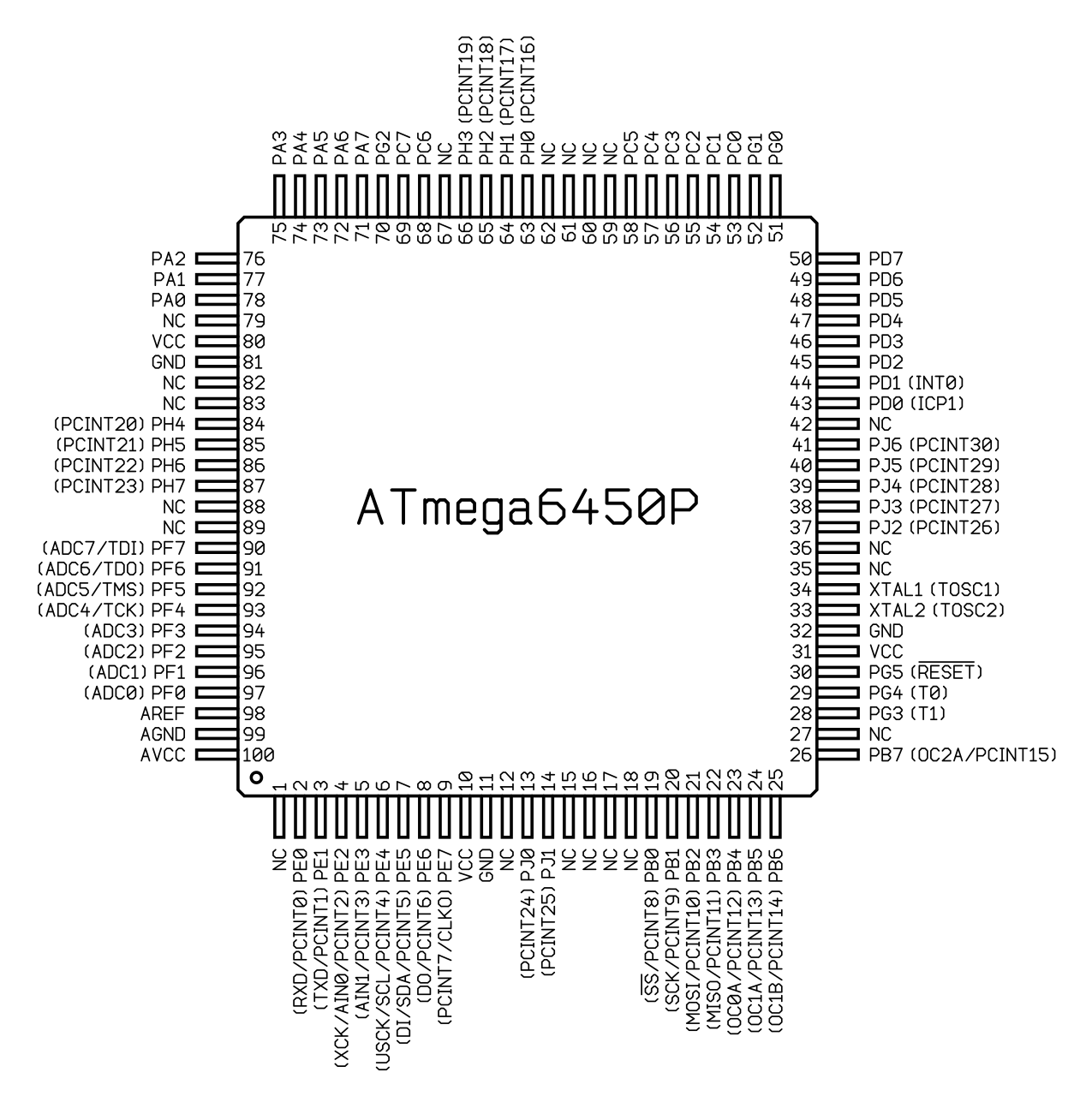

Name:ATmega6450P
Short description:8-bit AVR Microcontroller

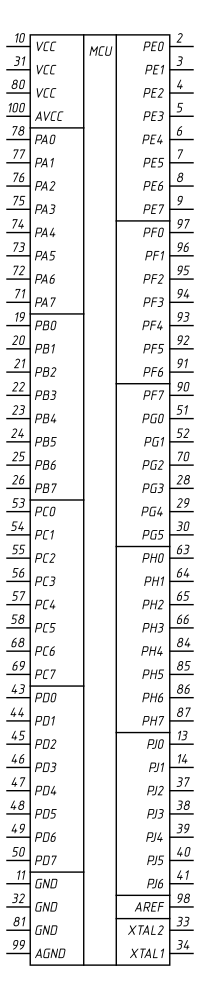

Symbol:

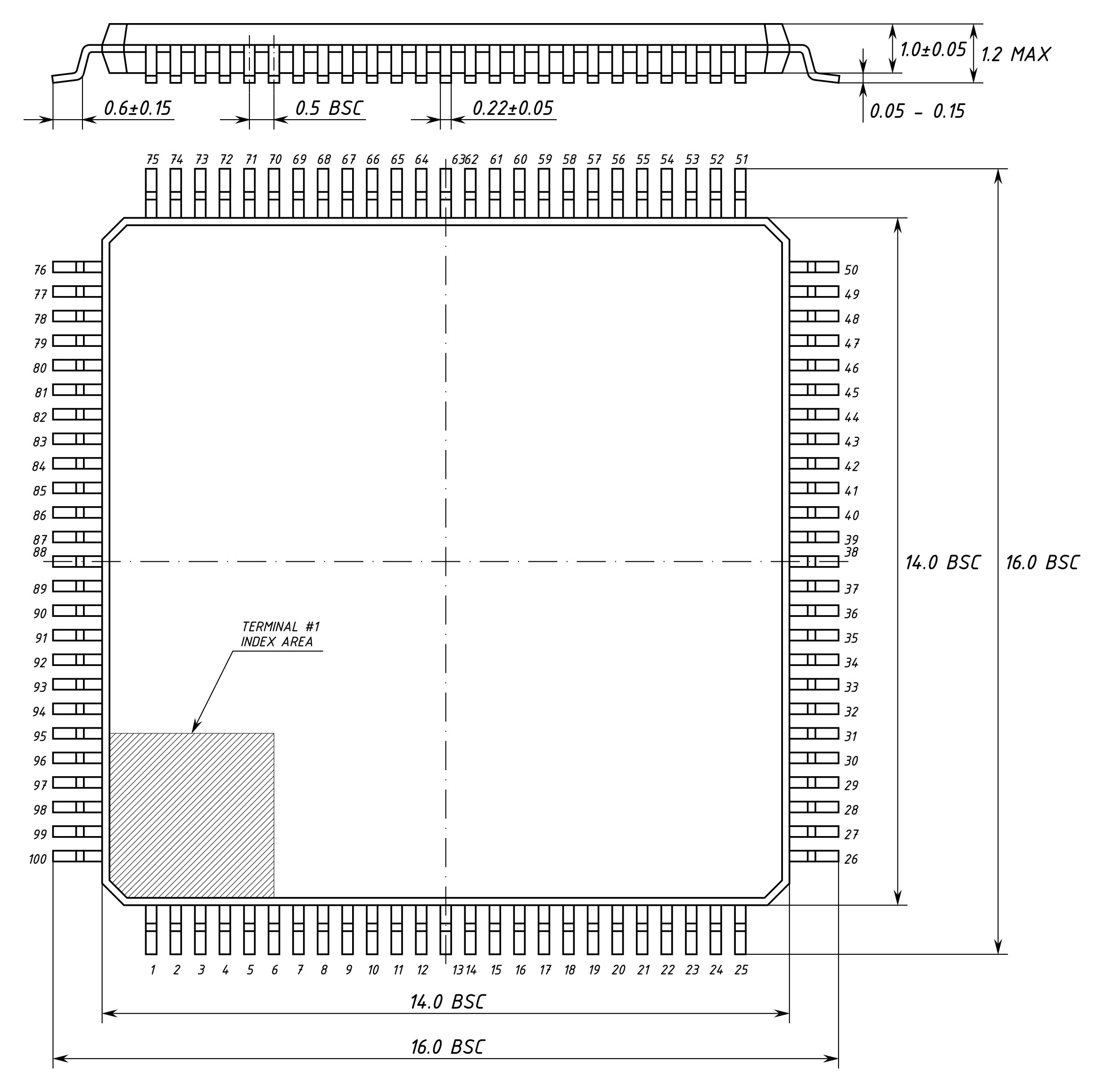

TQFP-100 (JEDEC MS-026-AED)

VendorPart number / Specifications
AtmelATmega6450P-AU
AtmelATmega6450P-AUR
