Category:
Name:ATmega329
Short description:8-bit AVR Microcontroller

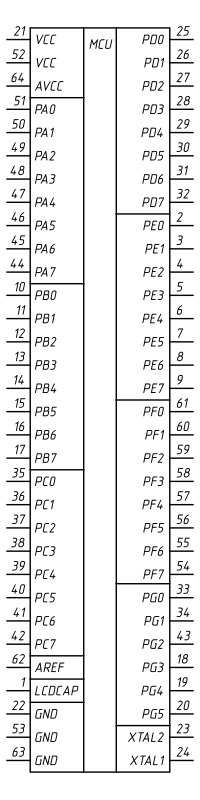

Symbol:

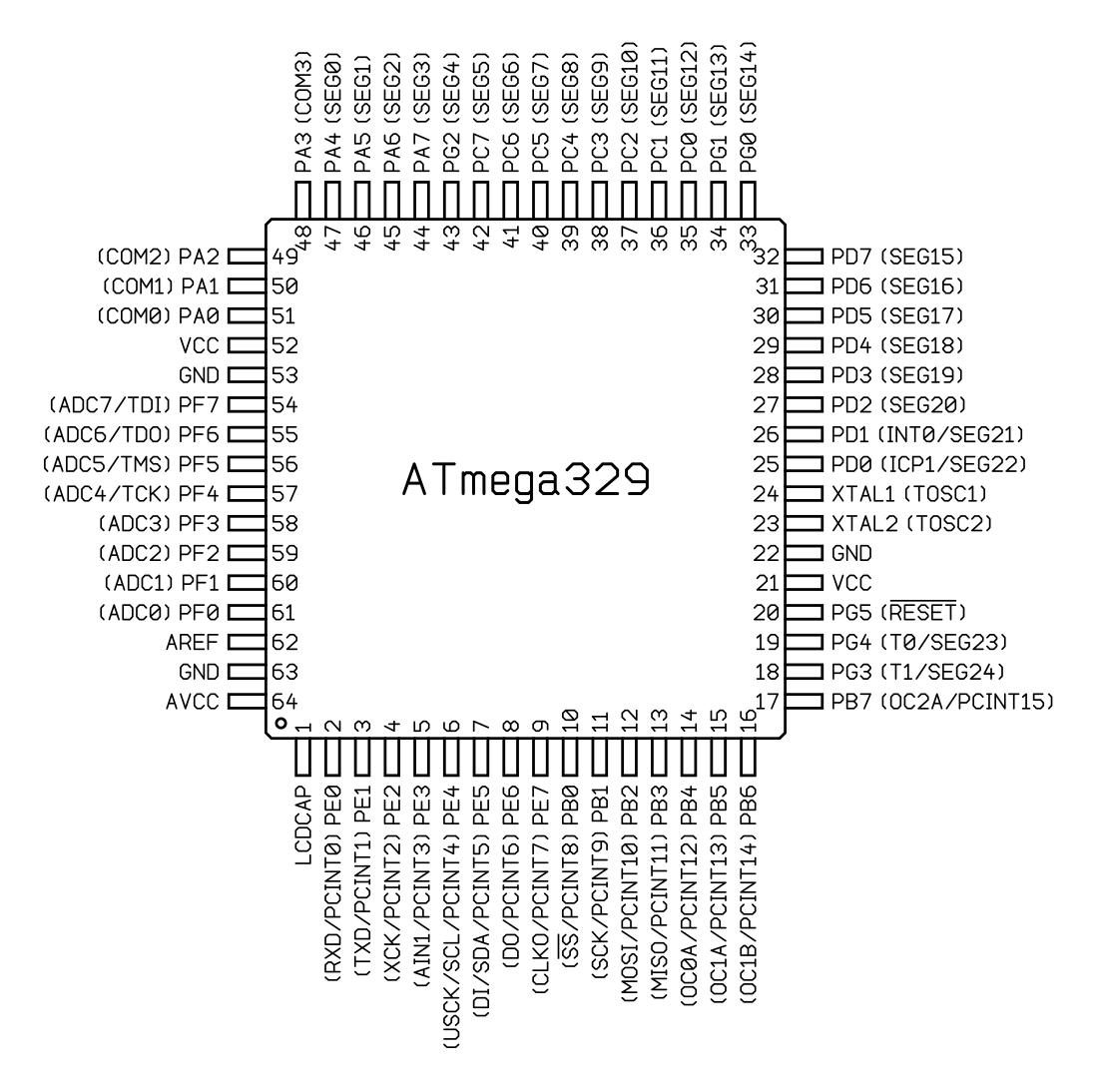

TQFP-64 (JEDEC MS-026-AEB)

VendorPart number / Specifications
AtmelATmega329-16AU
AtmelATmega329-16AUR
