Category:
Name:ATmega3290PV
Short description:8-bit AVR Microcontroller

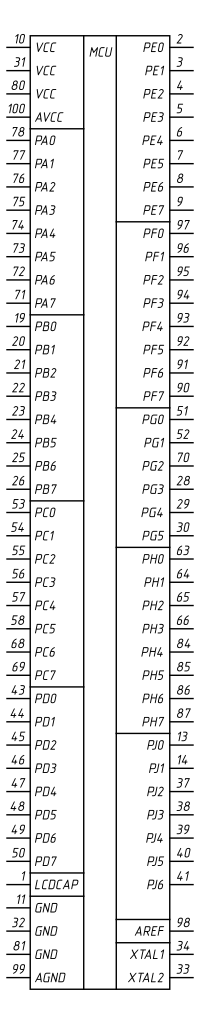

Symbol:

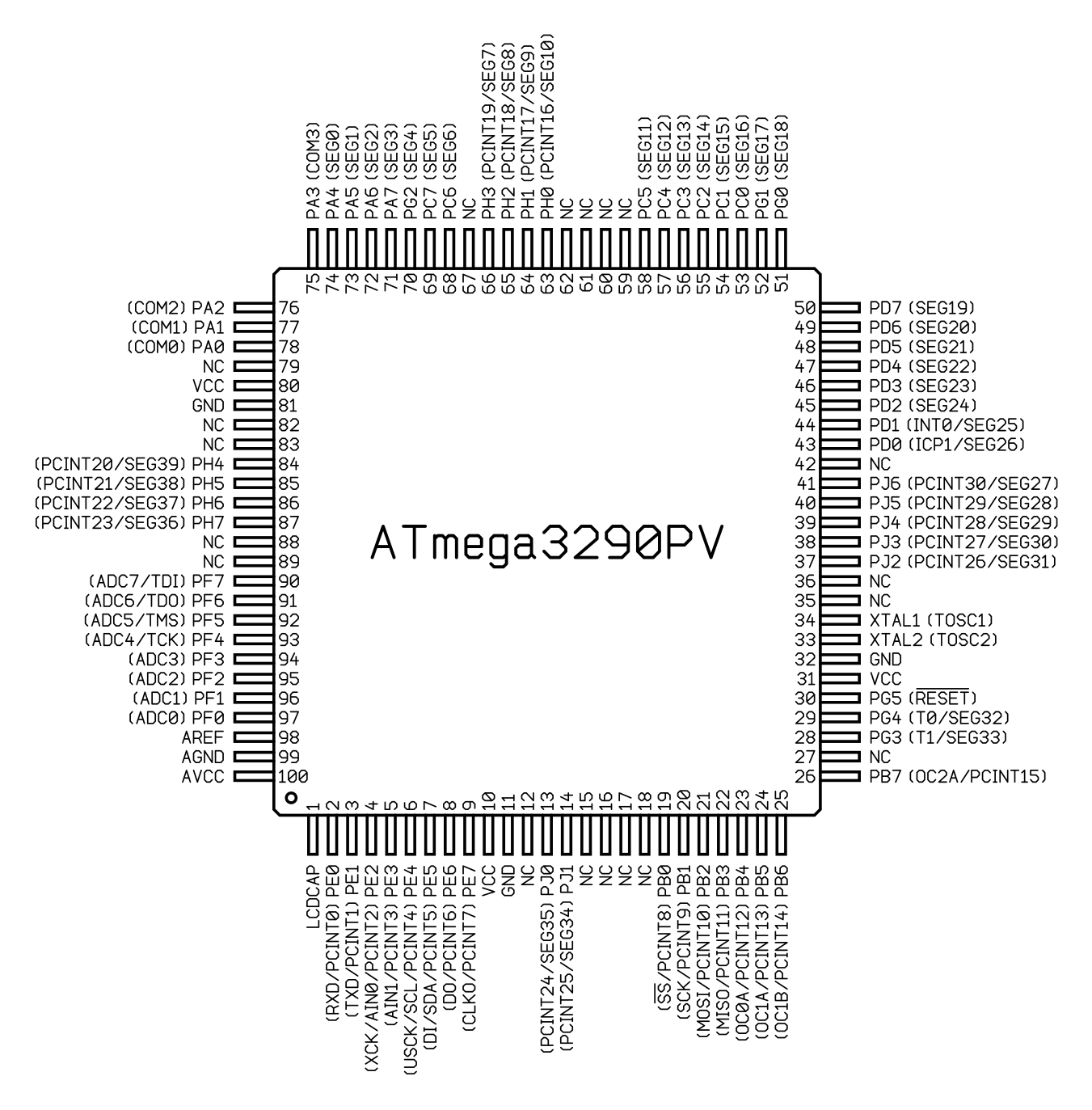

TQFP-100 (JEDEC MS-026-AED)

VendorPart number / Specifications
AtmelATmega3290PV-10AU
AtmelATmega3290PV-10AUR
