Category:
Name:6512
Short description:8 bit microprocessor
Symbol:

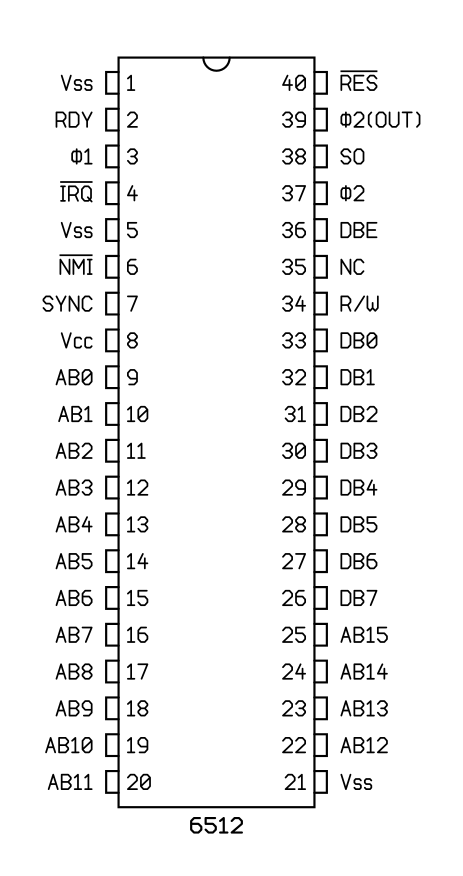

Pinout: Default Style: GOST

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications
MOS TechnologyMCS6512
MOS TechnologyMCS6512A
