6520
Peripheral Interface Adapter
Pinout:
Default

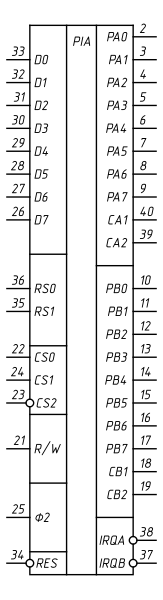

Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

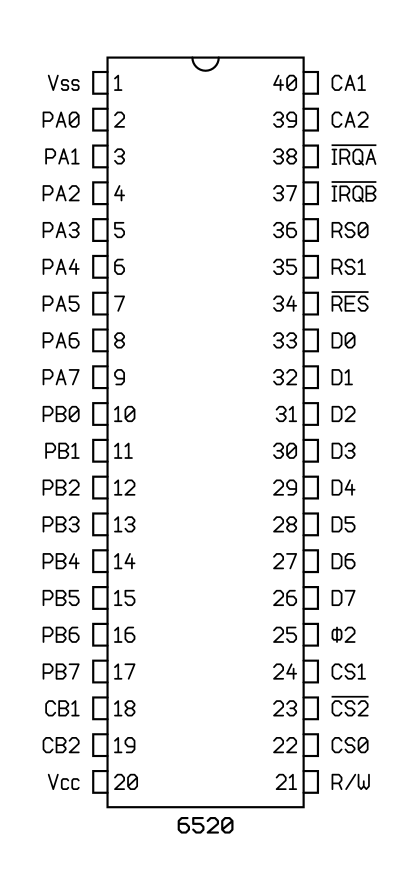

Pinout
Manufacturer:
Rockwell International
Part number:
R6520AP
Manufacturer:
Rockwell International
Part number:
R6520P
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
