Category:
Name:6522
Short description:Versatile interface adapter
Symbol:

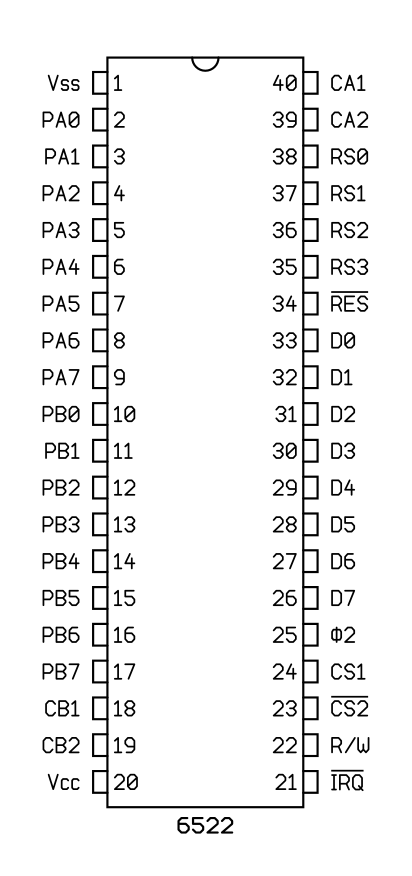

Pinout: Default Style: GOST

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications
MOS TechnologyMCS6522
Rockwell InternationalR6522AP
Rockwell InternationalR6522P
