Category:
Name:6525
Short description:Tri-Port Interface

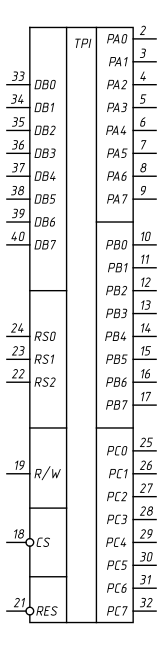

Symbol:

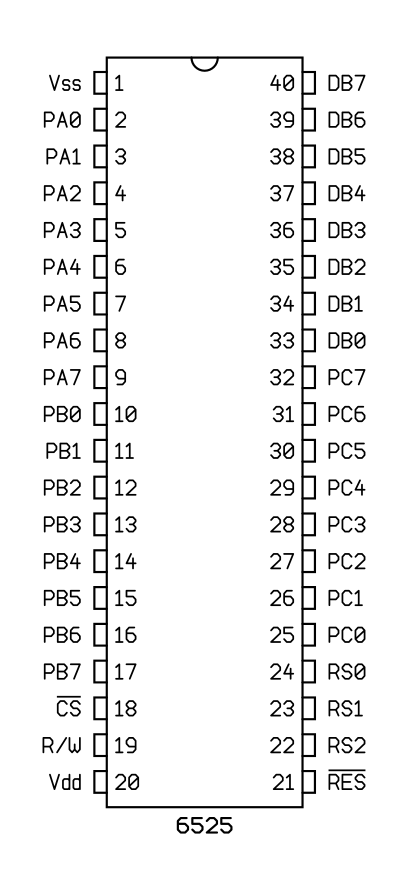

Pinout: Default Style: GOST

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications
Commodore Semiconductor GroupMPS6525
Commodore Semiconductor GroupMPS6525A
Commodore Semiconductor GroupMPS6525B
