Category:
Name:FT232R
Short description:USB to serial UART interface

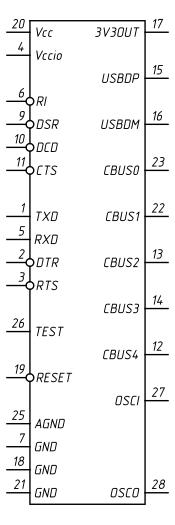

Symbol:
Pinout: Default Style: GOST

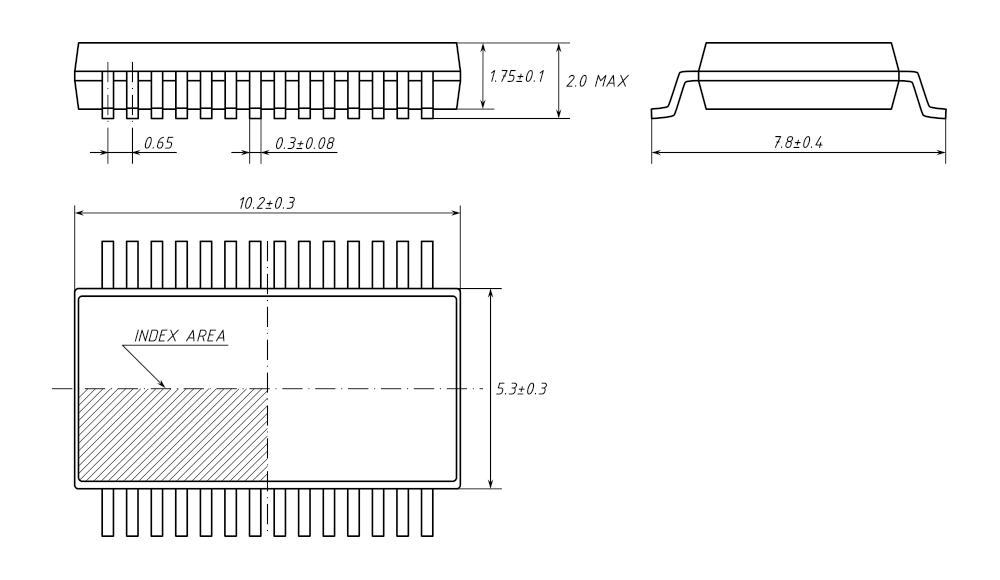

SSOP-28 (JEDEC MO-150, variation AH)

VendorPart number / Specifications
FTDI ChipFT232RL
