Serial input/output controller
Pinout:
TQFP-44
Style:
GOST
Variant:
Variant 1
TQFP-44
(JEDEC MS-026-ACB)

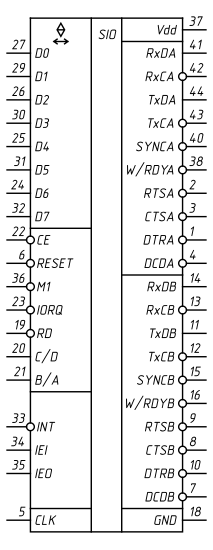

Pinout
Manufacturer:
Zilog
Part number:
Z84C4306
Manufacturer:
Zilog
Part number:
Z84C4308
Manufacturer:
Zilog
Part number:
Z84C4310
TQFP-44 (JEDEC MS-026-ACB)
package diagram
