Category:
Name:Z8400
Short description:8-bit CPU

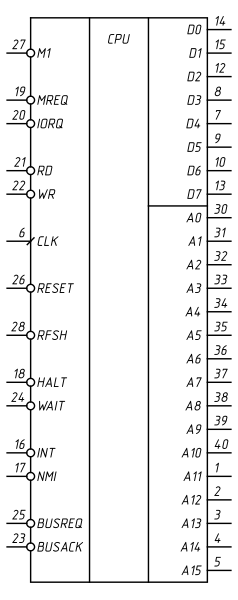

Symbol:

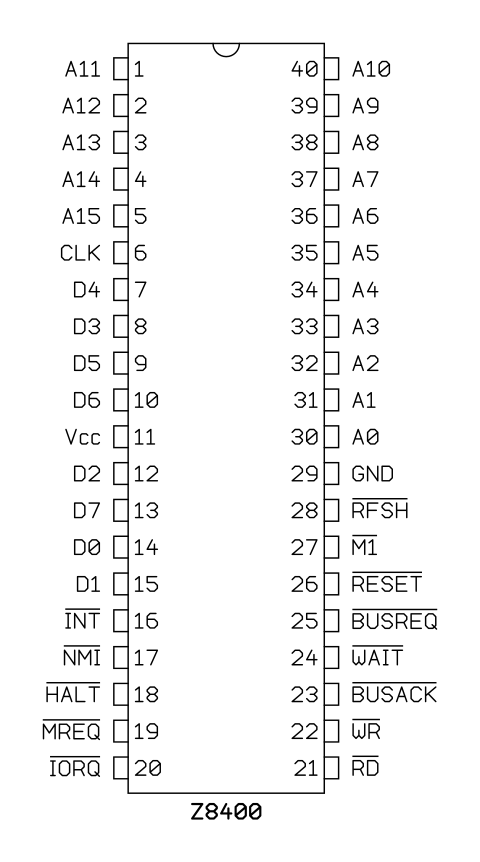

Pinout: Default Style: GOST

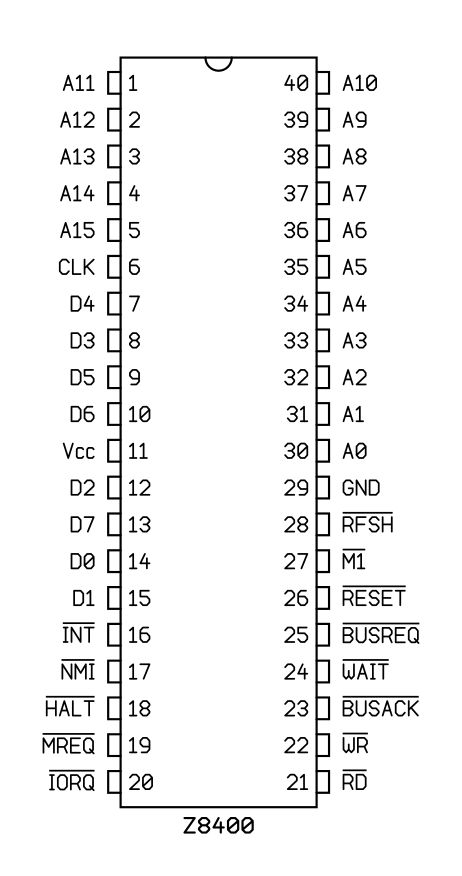

PDIP-40 (JEDEC MS-011, Variation AC) [Pinout]

VendorPart number / Specifications

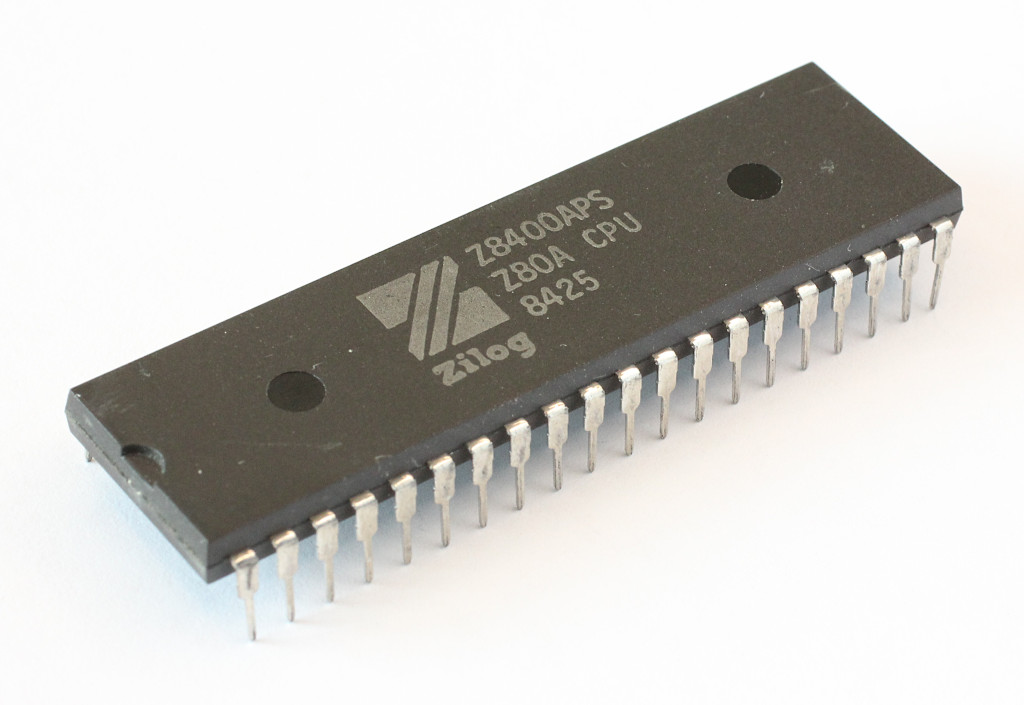

ZilogZ8400APS
