IR2102
Драйвер ключей нижнего и верхнего уровней

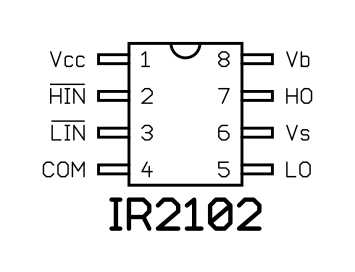

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-8
(JEDEC MS-001, Variation BA)
Pinout
Manufacturer:
International Rectifier
Part number:
IR2102
PDIP-8 (JEDEC MS-001, Variation BA)
package diagram
SOIC-8
(JEDEC MS-012, Variation AA)
Pinout
Manufacturer:
International Rectifier
Part number:
IR2102S
SOIC-8 (JEDEC MS-012, Variation AA)
package diagram
