Components
Category:
Name:NE555
Short description:Precision timer
Symbol:

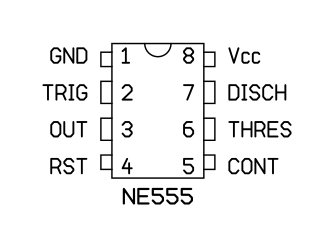

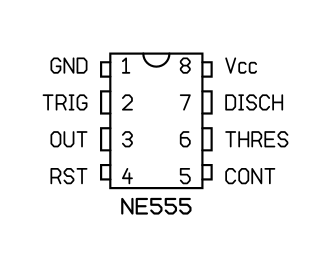

Pinout: Default Style: GOST

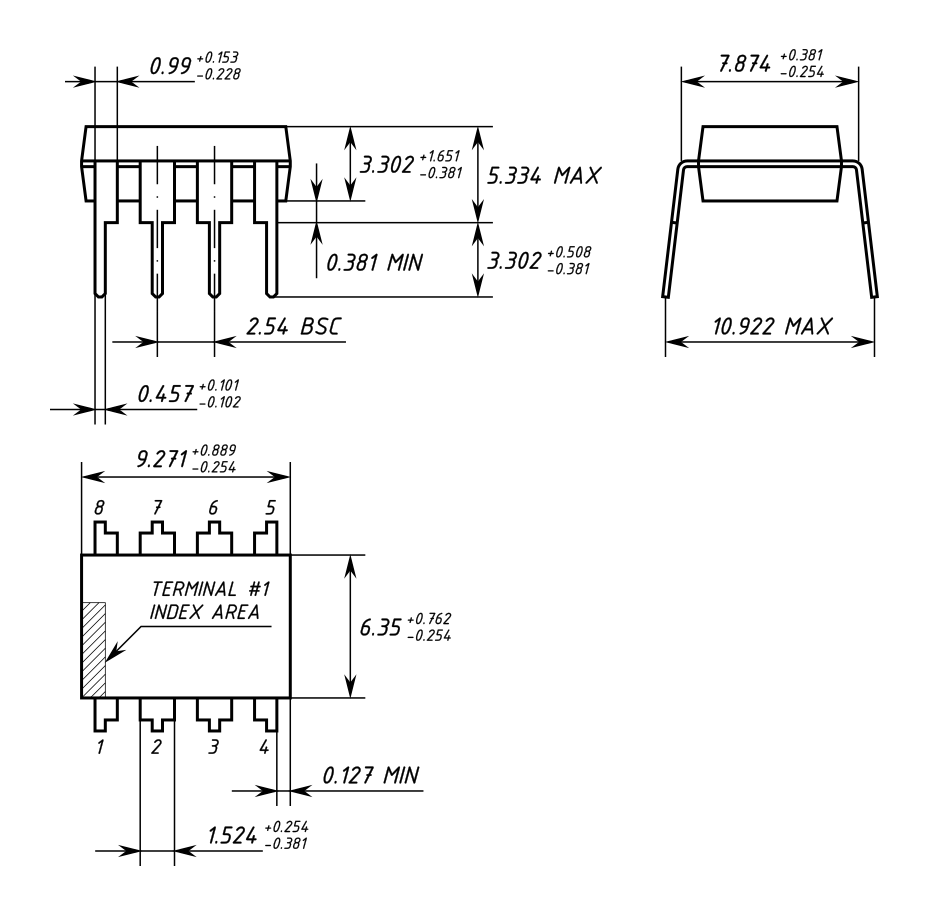

PDIP-8N (JEDEC MS-001, Variation BA)

VendorPart number / Specifications

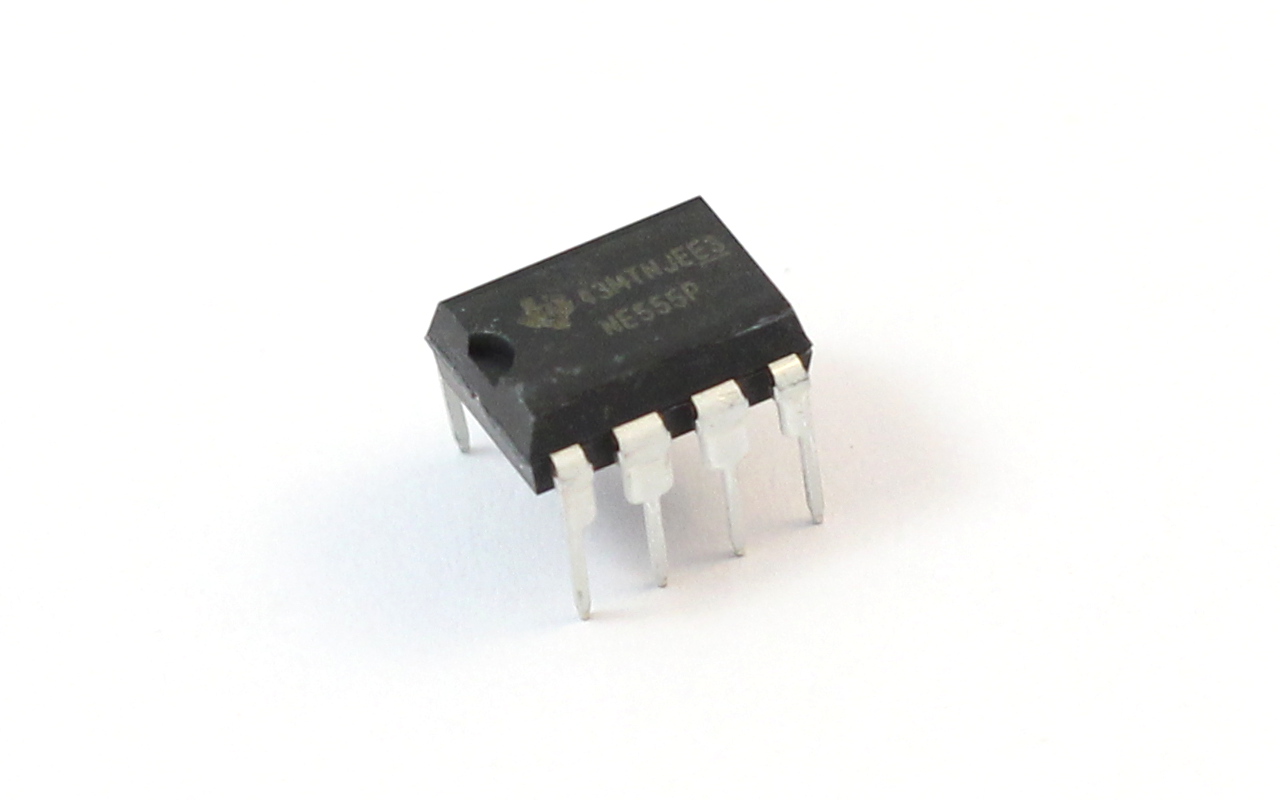

Texas InstrumentsNE555P
