Name:ATtiny13
Short description:8-bit AVR Microcontroller
Symbol:
Pinout: Style: GOST Variant:

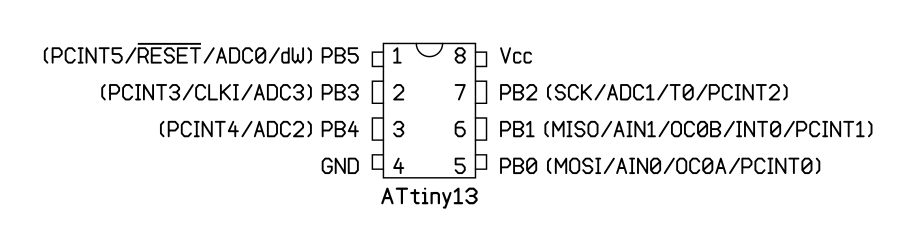

PDIP-8 (JEDEC MS-001, Variation BA) [Pinout]

VendorPart number / Specifications
AtmelATtiny13-20PU
MicrochipATtiny13A-PU
AtmelATtiny13V-10PU

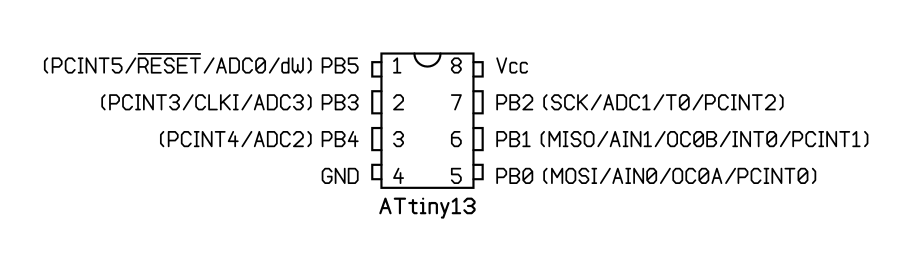

SOIC-8 (JEDEC MS-012-AA) [Pinout]

VendorPart number / Specifications
AtmelATtiny13-20SSU
AtmelATtiny13-20SSUR
MicrochipATtiny13A-SS7
MicrochipATtiny13A-SS7R
MicrochipATtiny13A-SSH
MicrochipATtiny13A-SSHR
MicrochipATtiny13A-SSU
MicrochipATtiny13A-SSUR
AtmelATtiny13V-10SSU
AtmelATtiny13V-10SSUR

SOP-8 (EIAJ)

VendorPart number / Specifications
AtmelATtiny13-20SU
AtmelATtiny13-20SUR
MicrochipATtiny13A-SF
MicrochipATtiny13A-SFR
MicrochipATtiny13A-SH
MicrochipATtiny13A-SHR
MicrochipATtiny13A-SN
MicrochipATtiny13A-SNR
MicrochipATtiny13A-SU
MicrochipATtiny13A-SUR
AtmelATtiny13V-10SU
AtmelATtiny13V-10SUR

WQFN-20 (JEDEC MO-220, WGGD-5)

VendorPart number / Specifications
AtmelATtiny13-20MU
AtmelATtiny13-20MUR
MicrochipATtiny13A-MU
MicrochipATtiny13A-MUR
AtmelATtiny13V-10MU
AtmelATtiny13V-10MUR

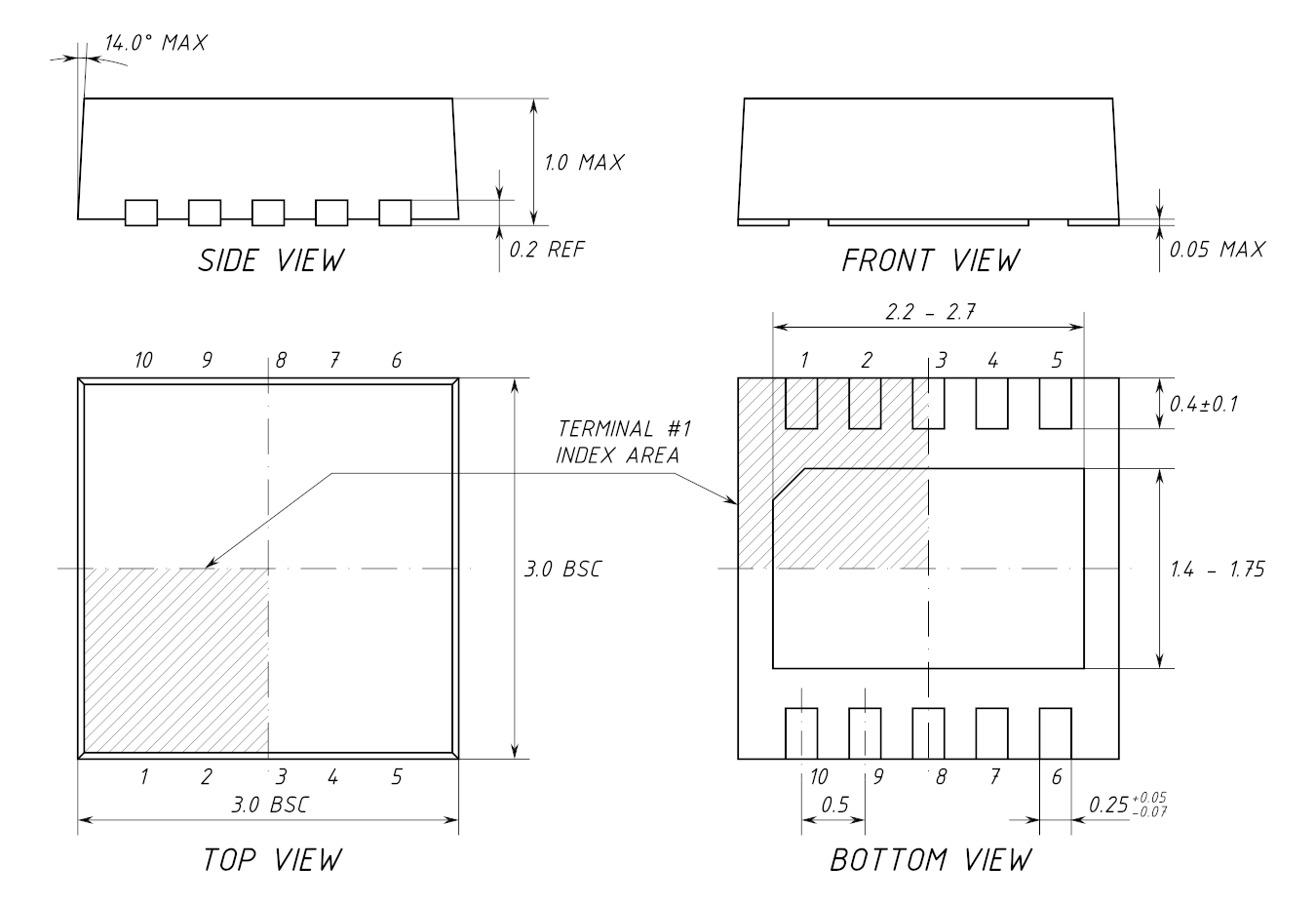

VDFN-10 (JEDEC MO-229, U3030D-5)

VendorPart number / Specifications
AtmelATtiny13-20MMU
AtmelATtiny13-20MMUR
MicrochipATtiny13A-MMF
MicrochipATtiny13A-MMFR
MicrochipATtiny13A-MMU
MicrochipATtiny13A-MMUR
AtmelATtiny13V-10MMU
AtmelATtiny13V-10MMUR
