Category:
Name:ATmega48
Short description:8-bit AVR microcontroller

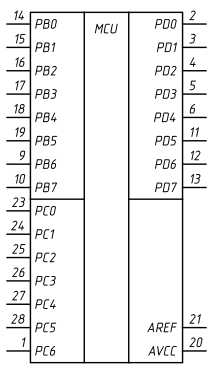

Symbol:

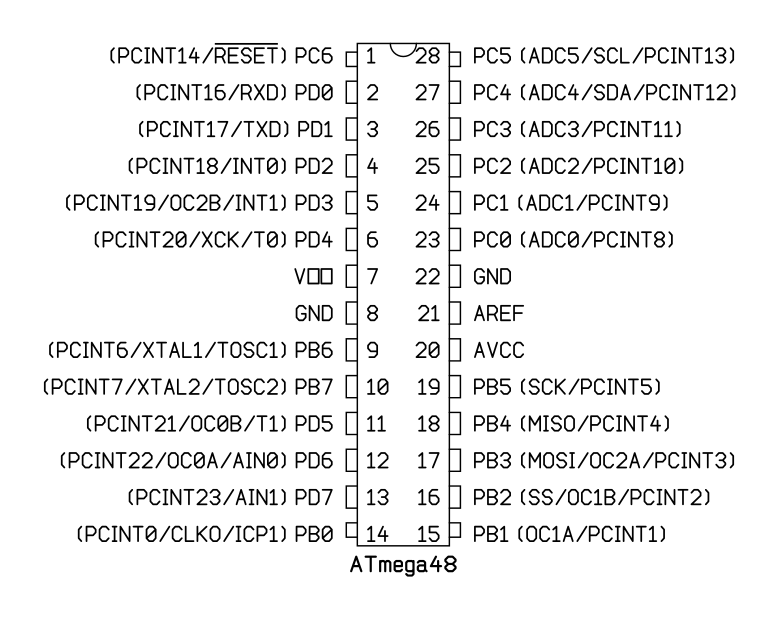

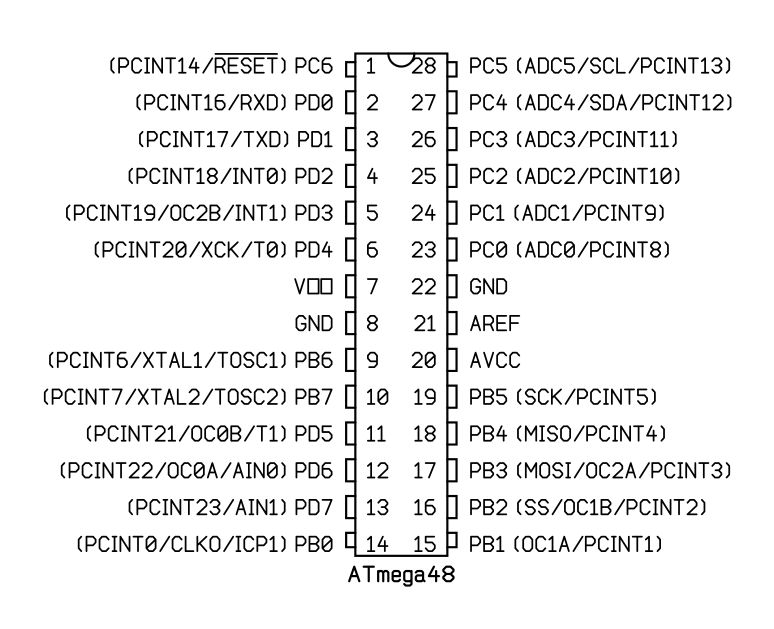

Pinout: Default Style: GOST

PDIP-28N

VendorPart number / Specifications
AtmelATmega48-20PU
