Name:ATmega8
Short description:8-bit AVR microcontroller

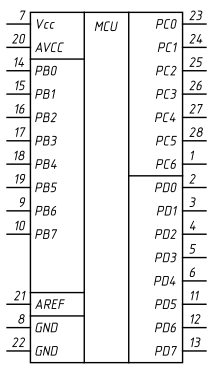

Symbol:

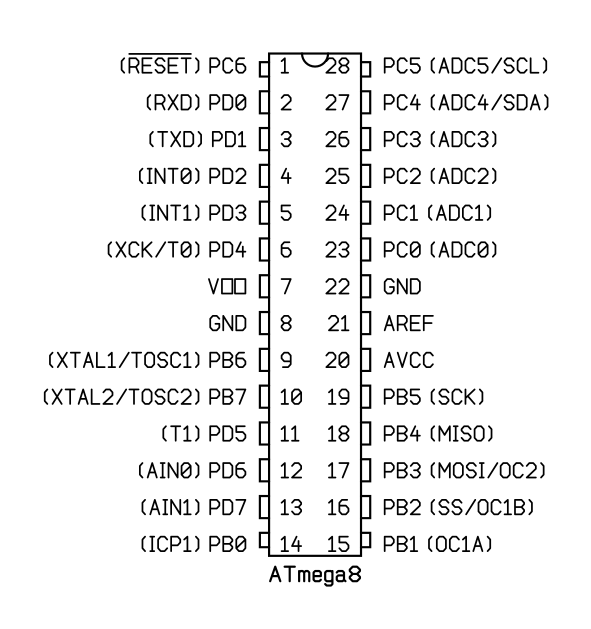

Pinout: Style: GOST

PDIP-28N

VendorPart number / Specifications
AtmelATmega8-16PN
AtmelATmega8-16PU

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
AtmelATmega8-16AN
AtmelATmega8-16ANR
AtmelATmega8-16AU
AtmelATmega8-16AUR

VQFN-32 (JEDEC MO-220, VHHD-2, T2)

VendorPart number / Specifications
AtmelATmega8-16MN
AtmelAtmega8-16MNR
AtmelATmega8-16MU
AtmelATmega8-16MUR
