Category:
Name:ATmega8L
Short description:8-bit AVR microcontroller

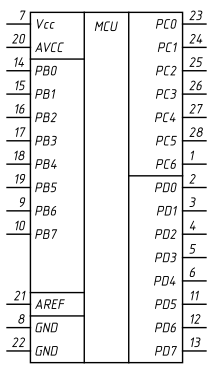

Symbol:
Pinout: Style: GOST

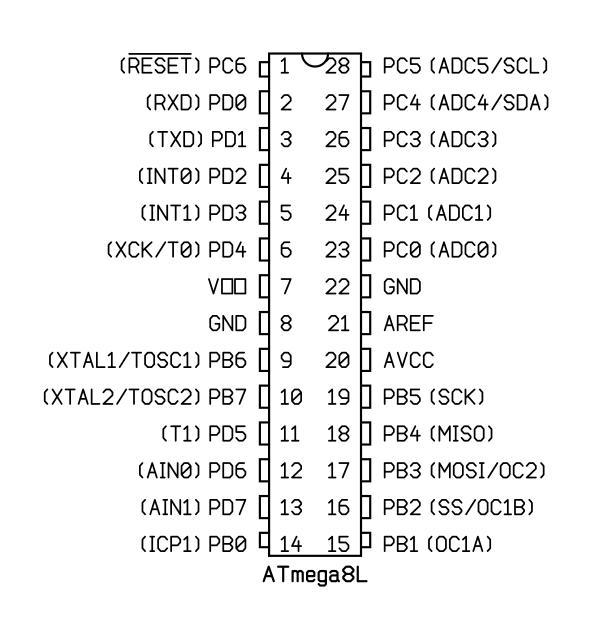

PDIP-28N

VendorPart number / Specifications
AtmelATmega8L-8PN
AtmelATmega8L-8PU

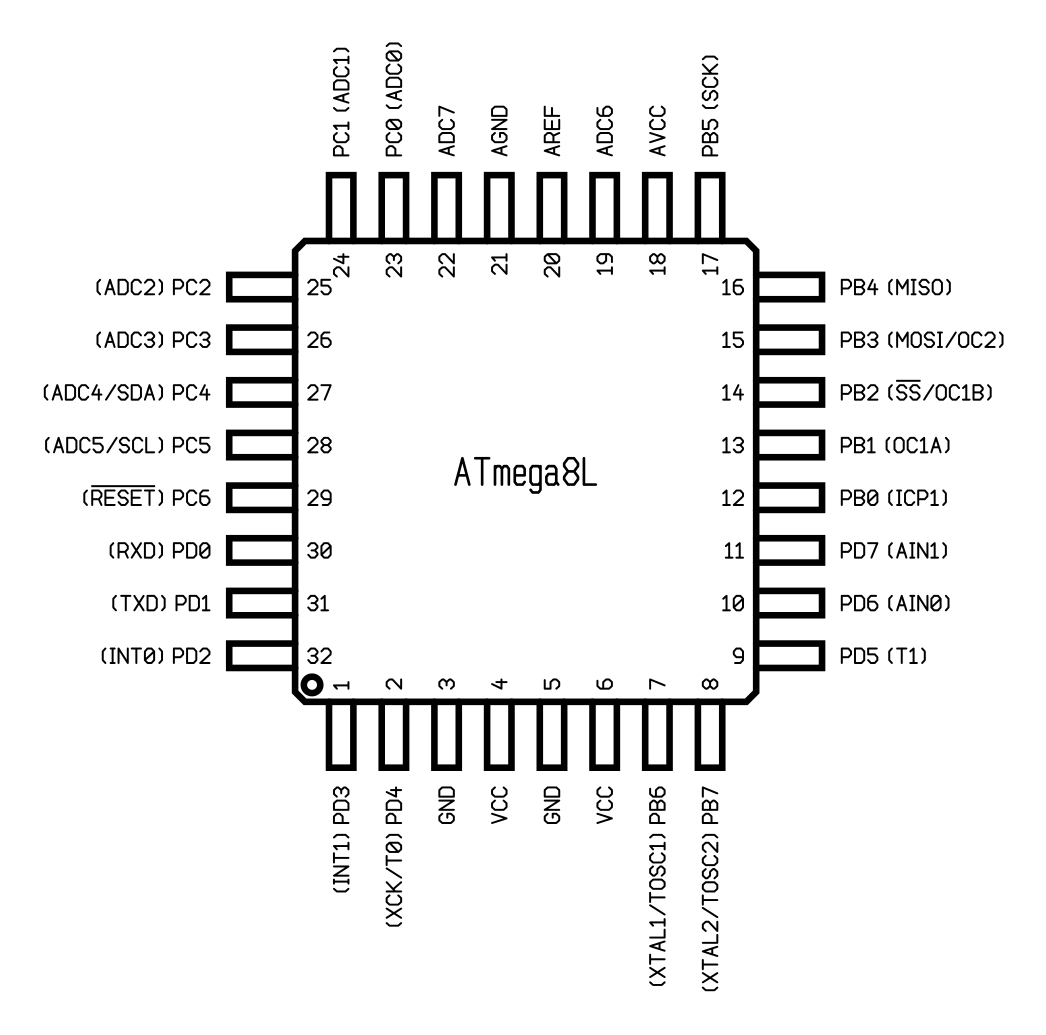

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
AtmelATmega8L-8AN
AtmelATmega8L-8ANR
AtmelATmega8L-8AU
AtmelATmega8L-8AUR

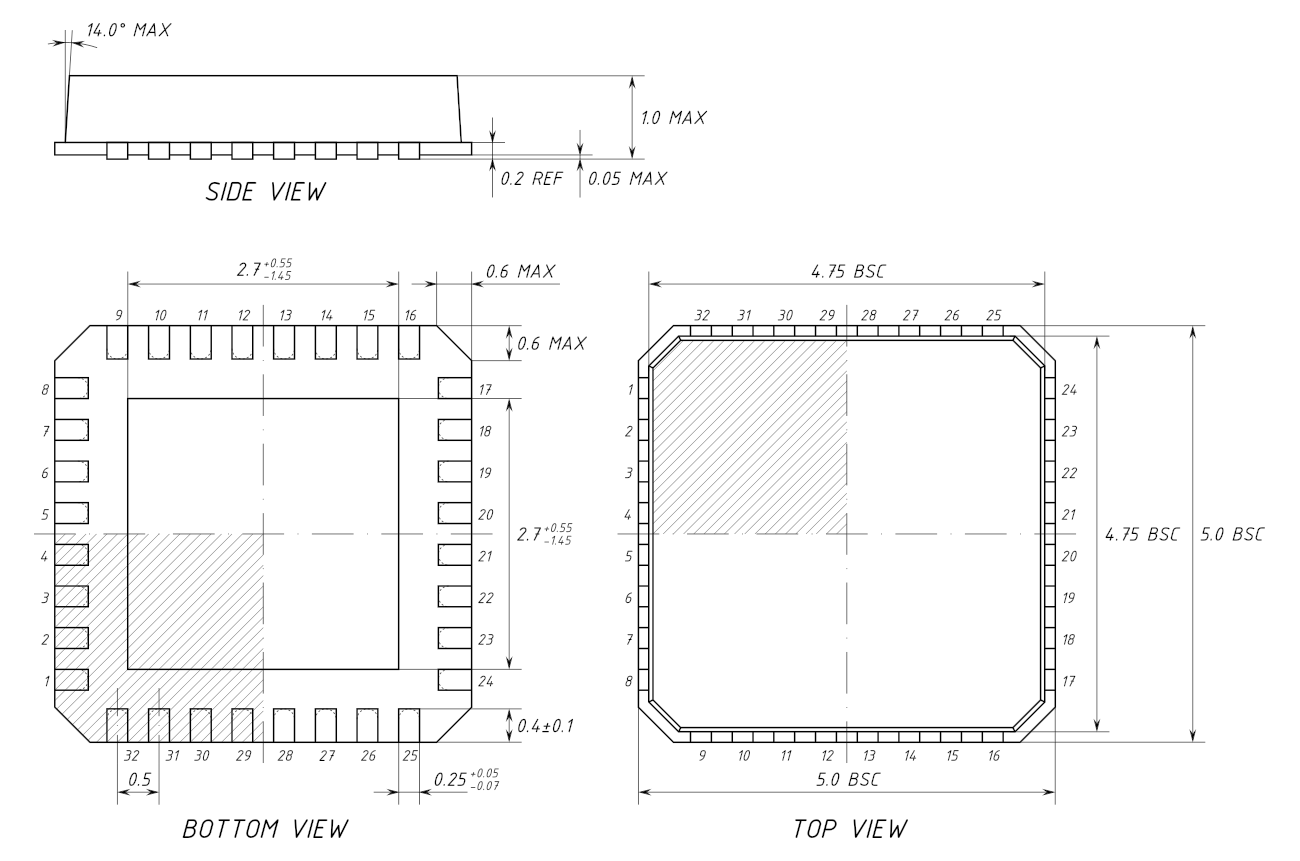

VQFN-32 (JEDEC MO-220, VHHD-2, T2)

VendorPart number / Specifications
AtmelATmega8L-8MN
AtmelATmega8L-8MNR
AtmelATmega8L-8MU
AtmelATmega8L-8MUR
