Category:
Name:ATmega16A
Short description:8-bit AVR microcontroller
Symbol:
Pinout: Style: GOST

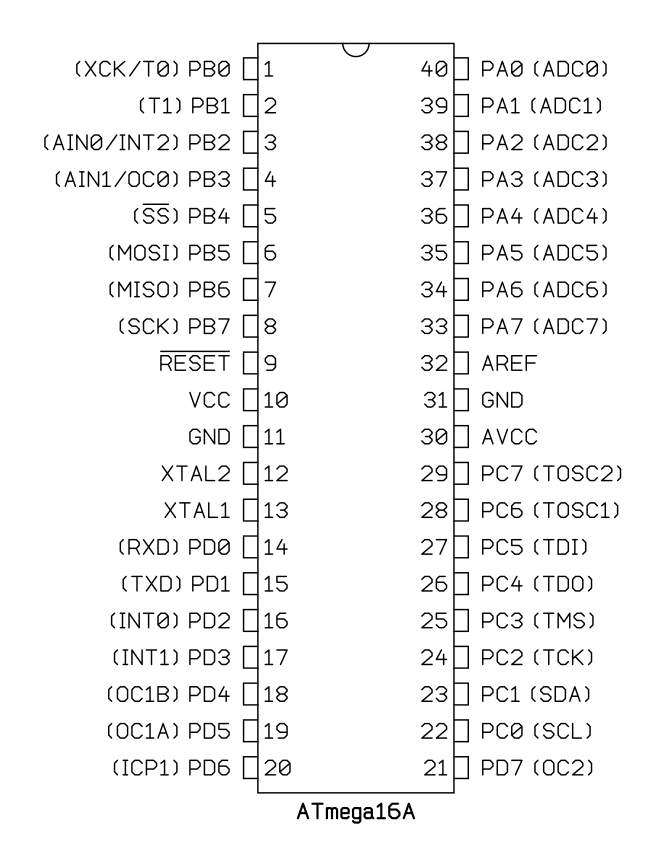

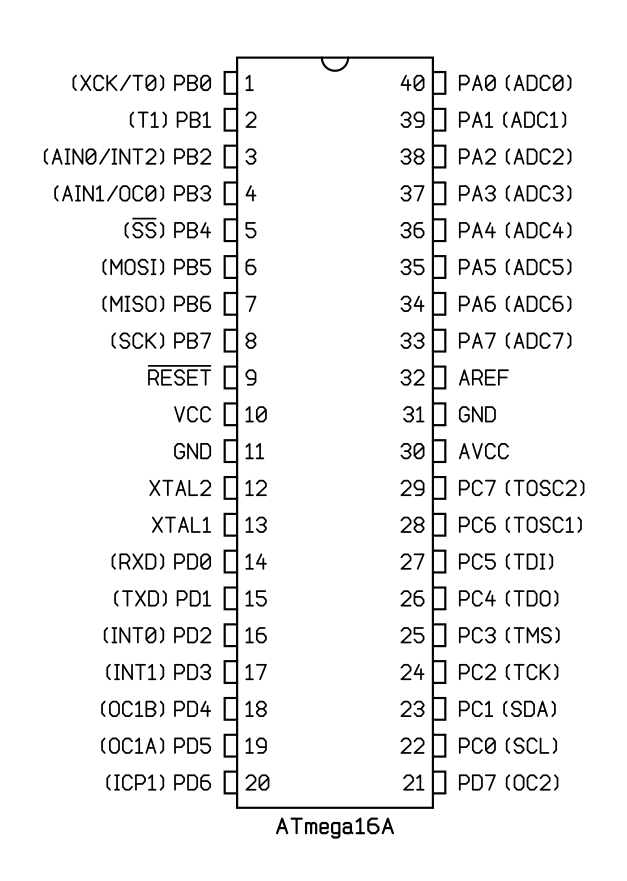

PDIP-40

VendorPart number / Specifications
AtmelATmega16A-PU

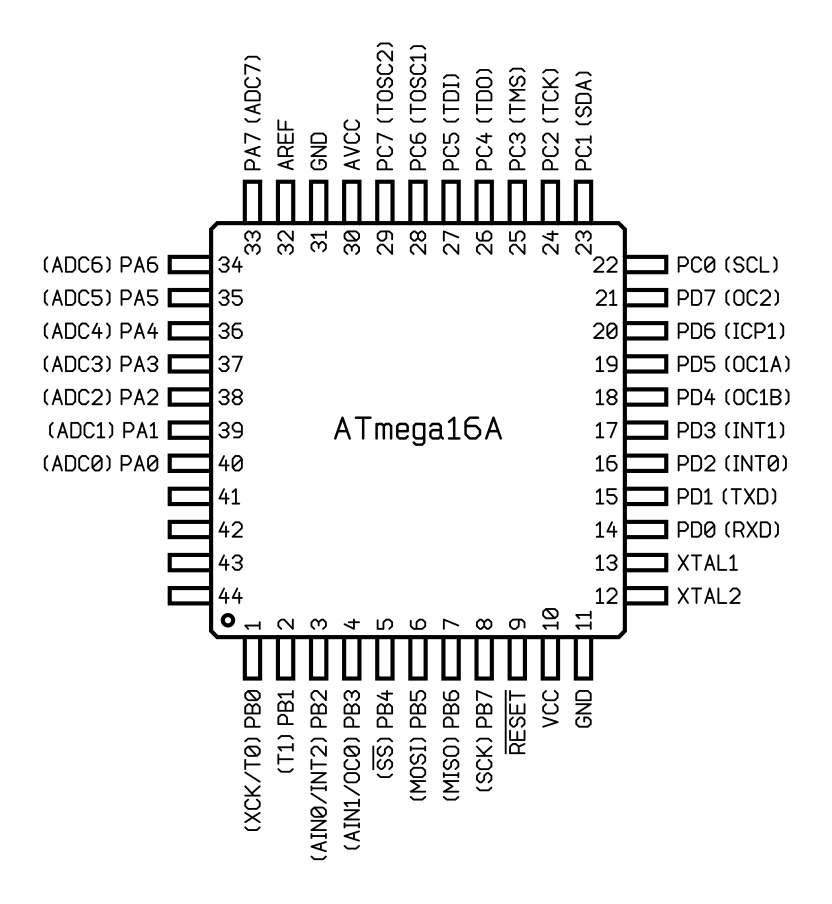

TQFP-44 (JEDEC MS-026-ACB)

VendorPart number / Specifications
AtmelATmega16A-AU
AtmelATmega16A-AUR
