Category:
Name:ATmega2561V
Short description:8-bit AVR microcontroller

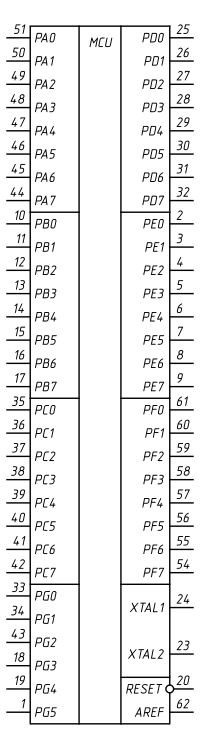

Symbol:

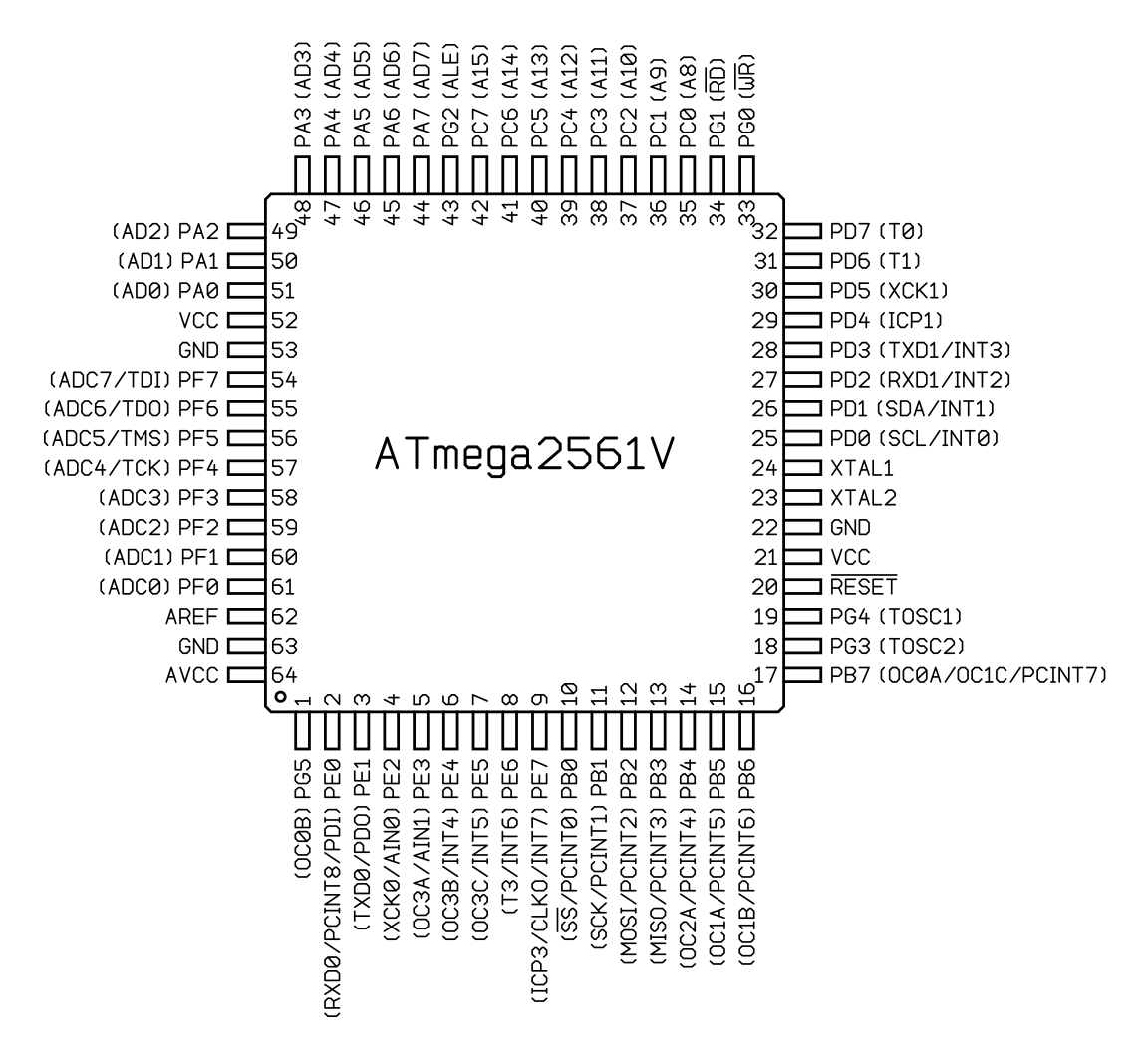

Pinout: Default Style: GOST

TQFP-64 (JEDEC MS-026-AEB)

VendorPart number / Specifications
MicrochipATmega2561V-8AU
MicrochipATmega2561V-8AUR
