Category:
Name:ATtiny26
Short description:8-bit AVR Microcontroller

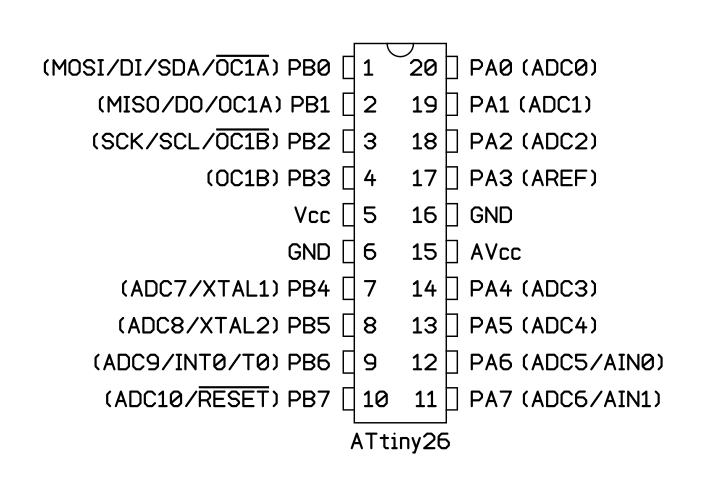

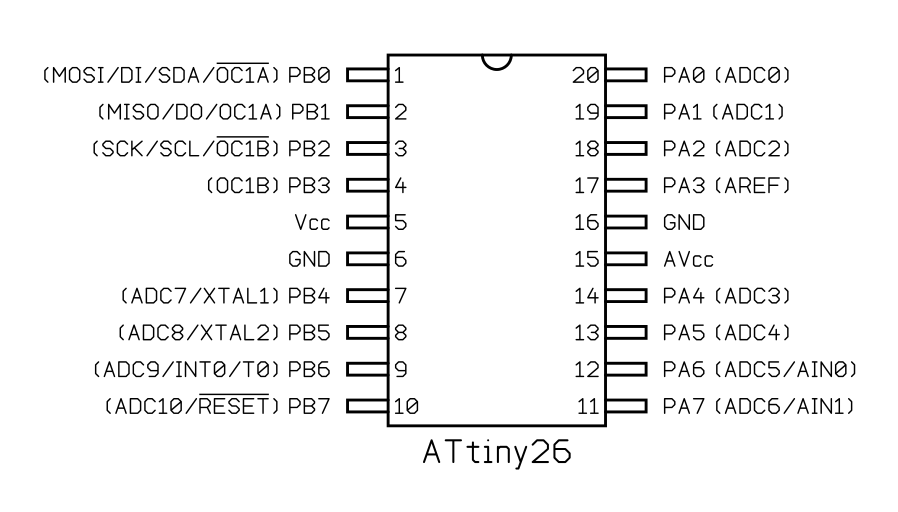

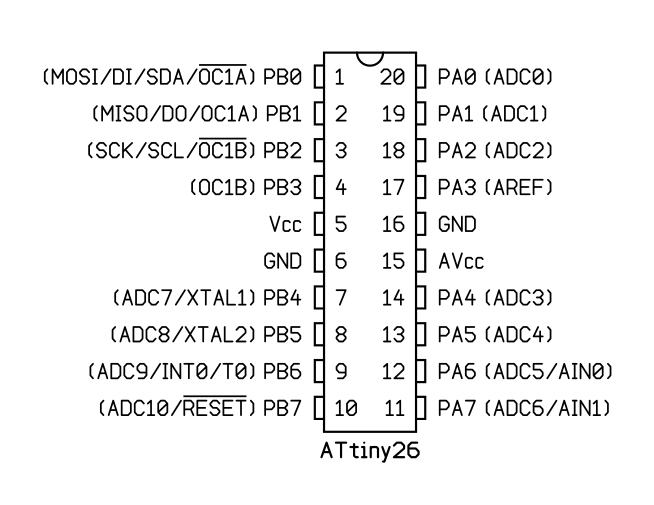

Symbol:

PDIP-20N

VendorPart number / Specifications
AtmelATtiny26-16PU
AtmelATtiny26L-8PU

SOP-20 (JEDEC MS-13)

VendorPart number / Specifications
AtmelATtiny26-16SU
AtmelATtiny26-16SUR
AtmelATtiny26L-8SU
AtmelATtiny26L-8SUR
