Name:ATtiny24
Short description:8-bit AVR Microcontroller
Symbol:
Pinout: Style: GOST Variant:

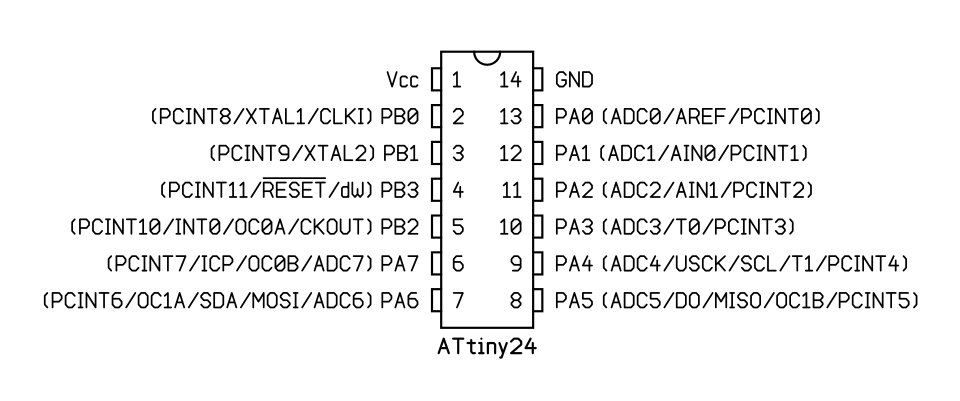

PDIP-14 (JEDEC MS-001, Variation AA) [Pinout]

VendorPart number / Specifications
AtmelATtiny24-20PU
MicrochipATtiny24A-PU
AtmelATtiny24V-10PU

SOIC-14 (JEDEC MS-012, variation AB)

VendorPart number / Specifications
AtmelATtiny24-20SSU
AtmelATtiny24-20SSUR
MicrochipATtiny24A-SSF
MicrochipATtiny24A-SSFR
MicrochipATtiny24A-SSN
MicrochipATtiny24A-SSNR
MicrochipATtiny24A-SSU
MicrochipATtiny24A-SSUR
AtmelATtiny24V-10SSU
AtmelATtiny24V-10SSUR

WQFN-20 (JEDEC MO-220, WGGD-5)

VendorPart number / Specifications
AtmelATtiny24-20MU
AtmelATtiny24-20MUR
MicrochipATtiny24A-MF
MicrochipATtiny24A-MFR
MicrochipATtiny24A-MU
MicrochipATtiny24A-MUR
AtmelATtiny24V-10MU
AtmelATtiny24V-10MUR
