Name:ATtiny25
Short description:8-bit AVR Microcontroller
Symbol:
Pinout: Style: GOST Variant:

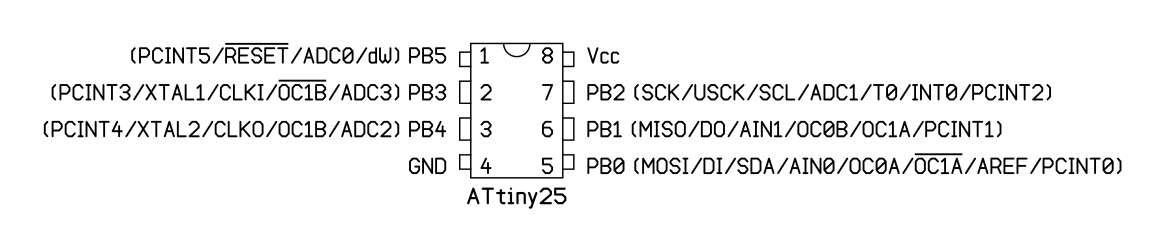

PDIP-8 (JEDEC MS-001, Variation BA) [Pinout]

VendorPart number / Specifications
AtmelATtiny25-20PU
AtmelATtiny25V-10PU

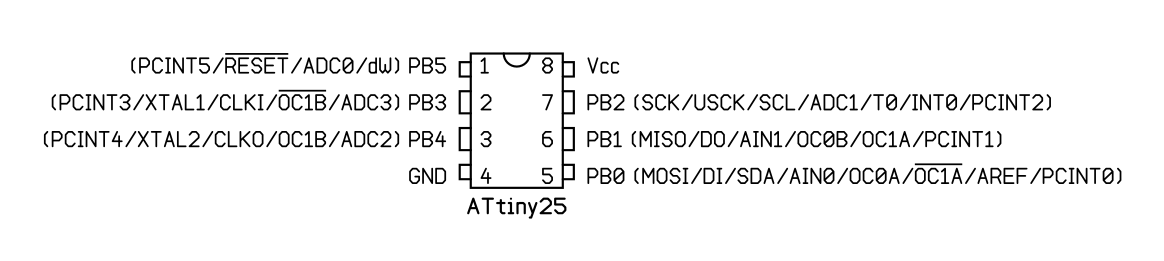

SOIC-8 (JEDEC MS-012-AA) [Pinout]

VendorPart number / Specifications
AtmelATtiny25-20SSH
AtmelATtiny25-20SSHR
AtmelATtiny25-20SSN
AtmelATtiny25-20SSNR
AtmelATtiny25-20SSU
AtmelATtiny25-20SSUR
AtmelATtiny25V-10SSH
AtmelATtiny25V-10SSHR
AtmelATtiny25V-10SSN
AtmelATtiny25V-10SSNR
AtmelATtiny25V-10SSU
AtmelATtiny25V-10SSUR

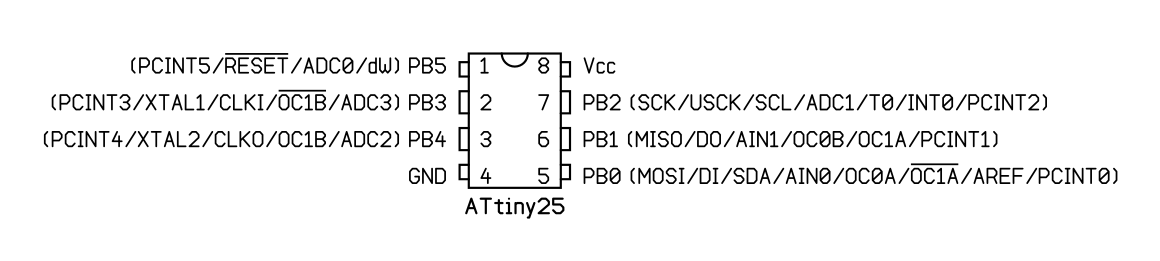

SOP-8 (EIAJ)

VendorPart number / Specifications
AtmelATtiny25-15ST
AtmelATtiny25-15ST1
AtmelATtiny25-15SZ
AtmelATtiny25-20SH
AtmelATtiny25-20SHR
AtmelATtiny25-20SN
AtmelATtiny25-20SNR
AtmelATtiny25-20SU
AtmelATtiny25-20SUR
AtmelATtiny25V-10SH
AtmelATtiny25V-10SHR
AtmelATtiny25V-10SN
AtmelATtiny25V-10SNR
AtmelATtiny25V-10SU
AtmelATtiny25V-10SUR

WQFN-20 (JEDEC MO-220, WGGD-5)

VendorPart number / Specifications
AtmelATtiny25-15MT
AtmelATtiny25-15MT1
AtmelATtiny25-15MZ
AtmelATtiny25-20MF
AtmelATtiny25-20MFR
AtmelATtiny25-20MU
AtmelATtiny25-20MUR
AtmelATtiny25V-10MF
AtmelATtiny25V-10MFR
AtmelATtiny25V-10MU
AtmelATtiny25V-10MUR
