Category:
Name:ATmega808
Short description:8-bit AVR microcontroller

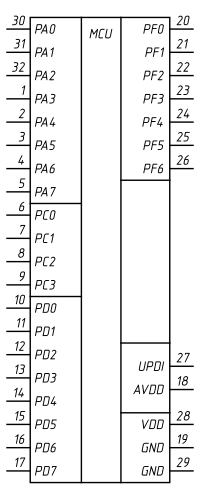

Symbol:
Pinout: Style: GOST

SSOP-28 (JEDEC MO-150, variation AH)

VendorPart number / Specifications
MicrochipATmega808-XF
MicrochipATmega808-XFR
MicrochipATmega808-XU
MicrochipATmega808-XUR

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
MicrochipATmega808-AF
MicrochipATmega808-AFR
MicrochipATmega808-AU
MicrochipATmega808-AUR
