Category:
Name:ATtiny2313
Short description:8-bit AVR Microcontroller
Symbol:

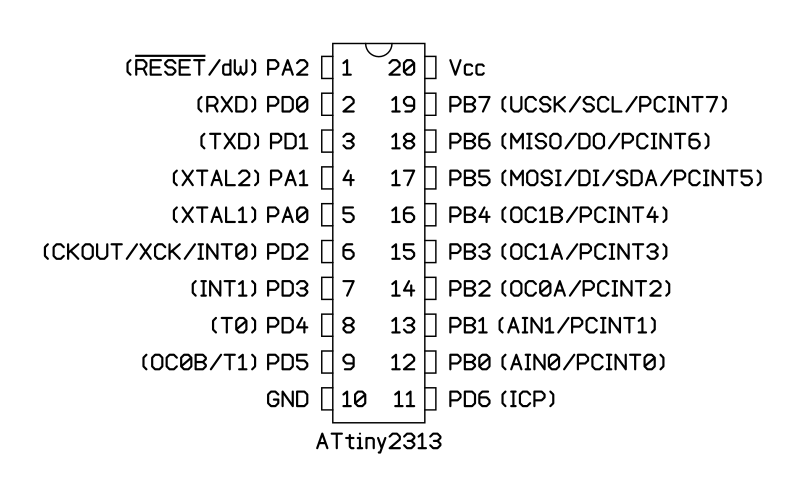

Pinout: Default Style: GOST

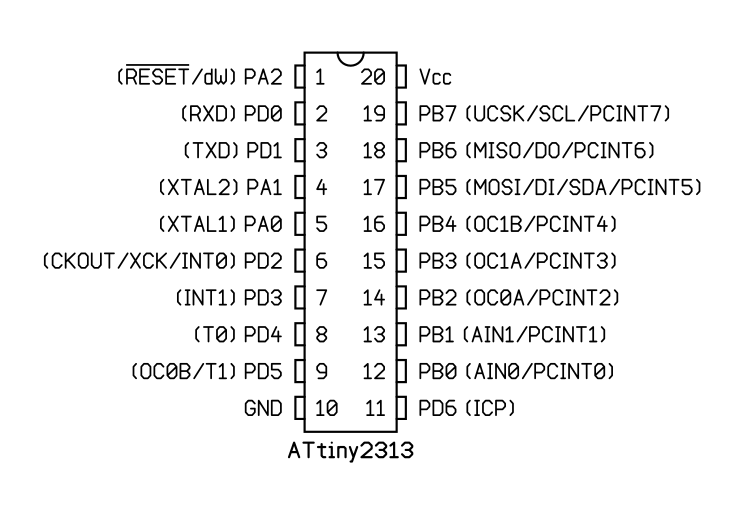

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
AtmelATtiny2313-20PU
AtmelATtiny2313V-10PU

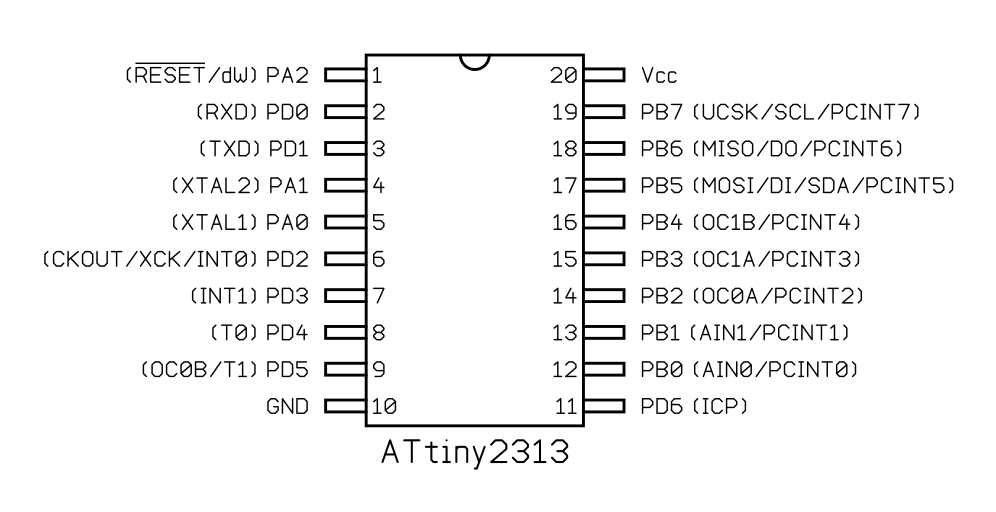

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
AtmelATtiny2313-20SU
AtmelATtiny2313-20SUR
AtmelATtiny2313V-10SU
AtmelATtiny2313V-10SUR
