Category:
Name:ATmega1608
Short description:8-bit AVR microcontroller

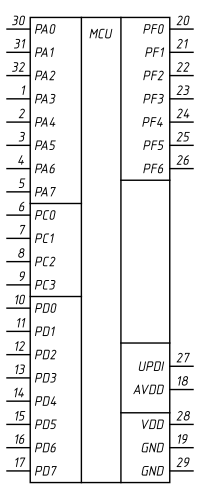

Symbol:
Pinout: Style: GOST

SSOP-28 (JEDEC MO-150, variation AH)

VendorPart number / Specifications
MicrochipATmega1608-XF
MicrochipATmega1608-XFR
MicrochipATmega1608-XU
MicrochipATmega1608-XUR

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
MicrochipATmega1608-AF
MicrochipATmega1608-AFR
MicrochipATmega1608-AU
MicrochipATmega1608-AUR
