| Category: |
|
| Name: | ATtiny102 |
| Short description: | 8-bit AVR Microcontroller |
Symbol:
|

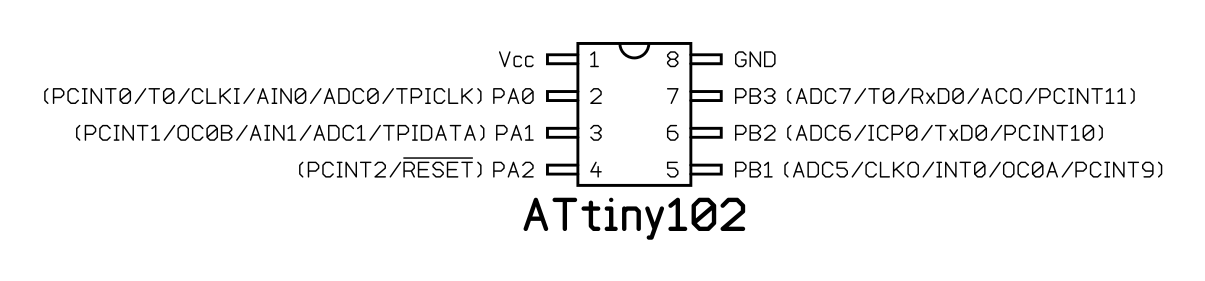

Pinout: Default
|
Style: GOST
|
Variant:
|
|---|
|
|
|
SOIC-8 (JEDEC MS-012-AA) [Pinout]
| Vendor | Part number / Specifications | | |
|---|
| Atmel | ATtiny102-SSFR |   | |
| Atmel | ATtiny102-SSNR | | |
| Atmel | ATtiny102F-SSFR | | |
| Atmel | ATtiny102F-SSNR | | |
|
|
|

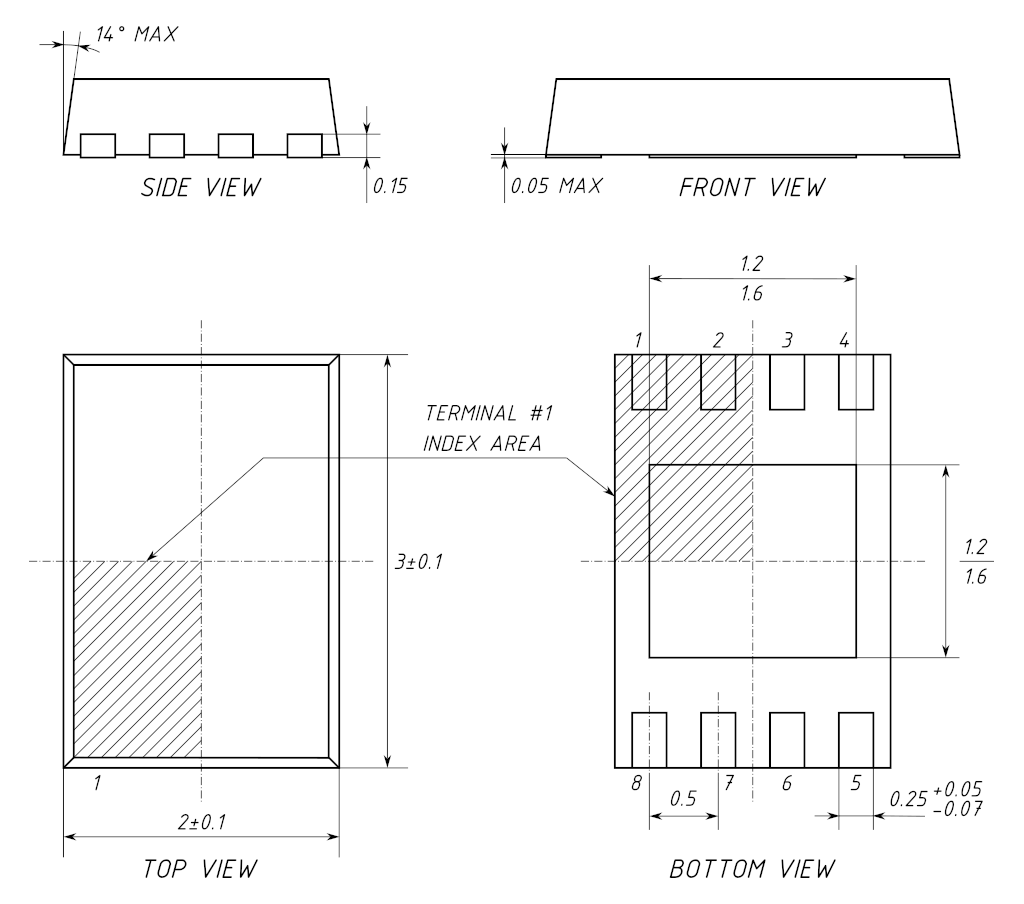

UDFN-8 (JEDEC MO-229, U2030D)
| Vendor | Part number / Specifications | | |
|---|
| Atmel | ATtiny102-M7R | | |
| Atmel | ATtiny102-M8R | | |
| Atmel | ATtiny102F-M7R | | |
| Atmel | ATtiny102F-M8R | | |
|
|
|
