8224
Сlock generator and driver for 8080 CPU

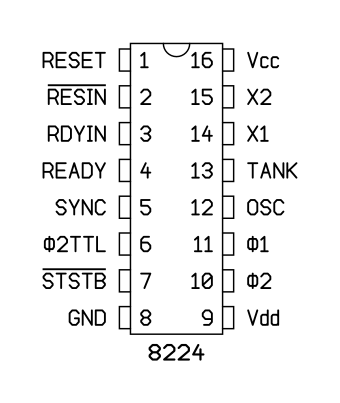

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation AB)

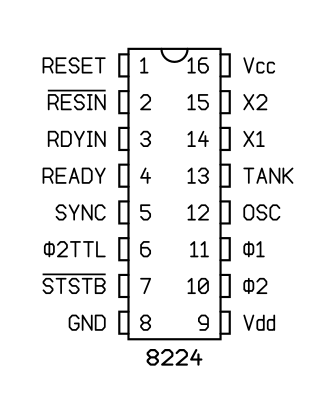

Pinout
Manufacturer:
Intel
Part number:
P8224

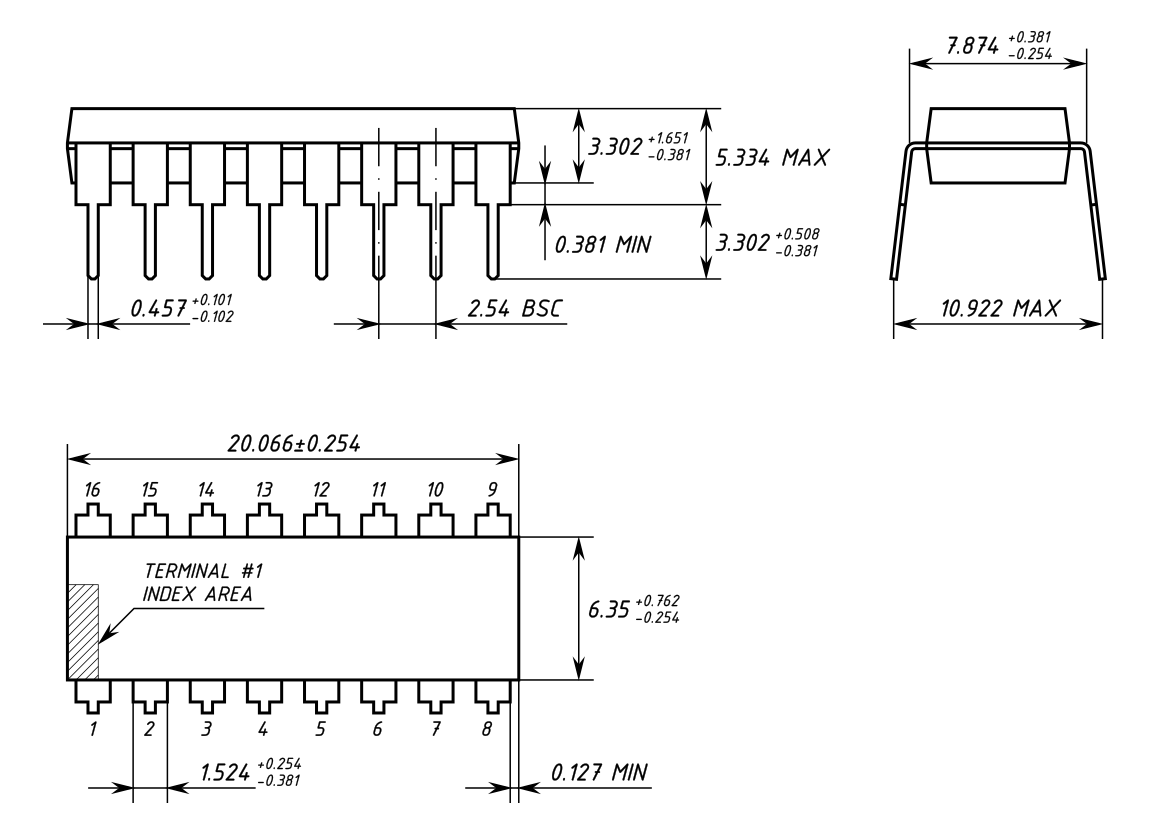

PDIP-16 (JEDEC MS-001, Variation AB)
package diagram
