ATtiny816
8-bit AVR Microcontroller

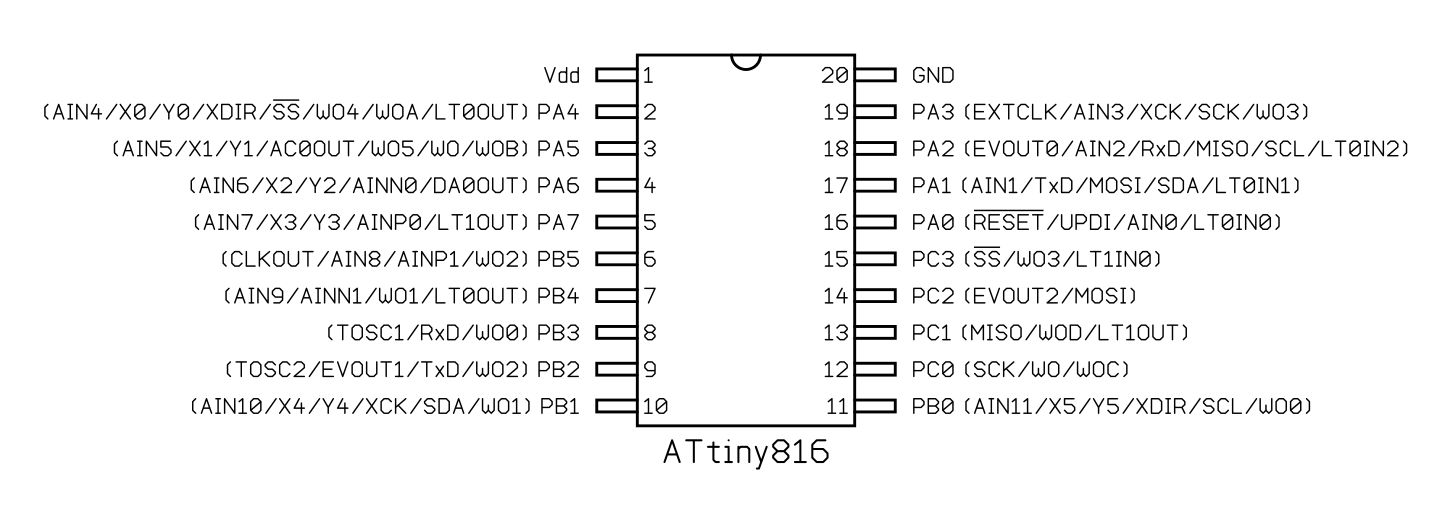

Pinout:
Default
Style:
GOST
Variant:
Variant 1
SOP-20
(JEDEC MS-013, Variation AC)
Manufacturer:
Microchip
Part number:
ATtiny816-SF
Manufacturer:
Microchip
Part number:
ATtiny816-SFR
Manufacturer:
Microchip
Part number:
ATtiny816-SN
Manufacturer:
Microchip
Part number:
ATtiny816-SNR
More
Less
SOP-20 (JEDEC MS-013, Variation AC)
package diagram
