Category:
Name:ATtiny1616
Short description:8-bit AVR Microcontroller

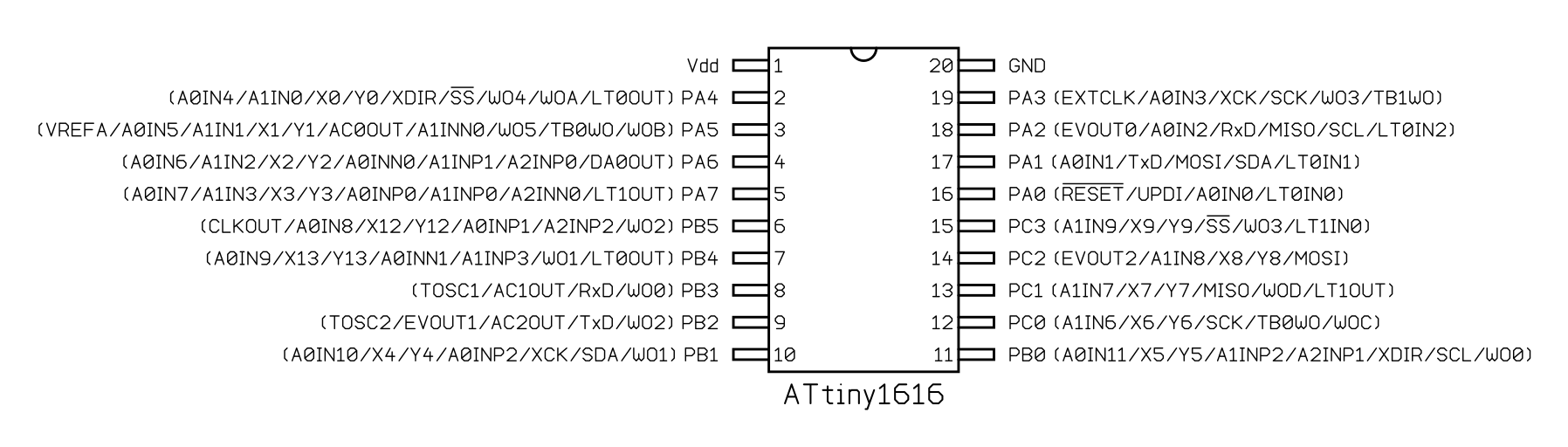

Symbol:

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATtiny1616-SF
MicrochipATtiny1616-SFR
MicrochipATtiny1616-SN
MicrochipATtiny1616-SNR
