Category:
Name:ATtiny3216
Short description:8-bit AVR Microcontroller

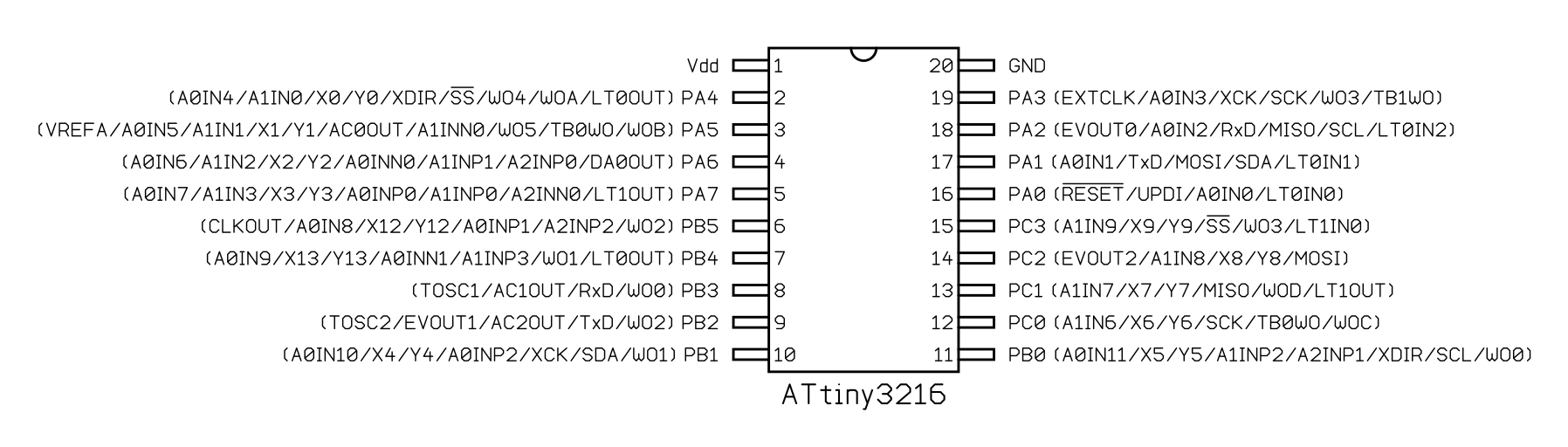

Symbol:

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATtiny3216-SF
MicrochipATtiny3216-SFR
MicrochipATtiny3216-SN
MicrochipATtiny3216-SNR
