Name:ATtiny1624
Short description:8-bit AVR Microcontroller
Symbol:

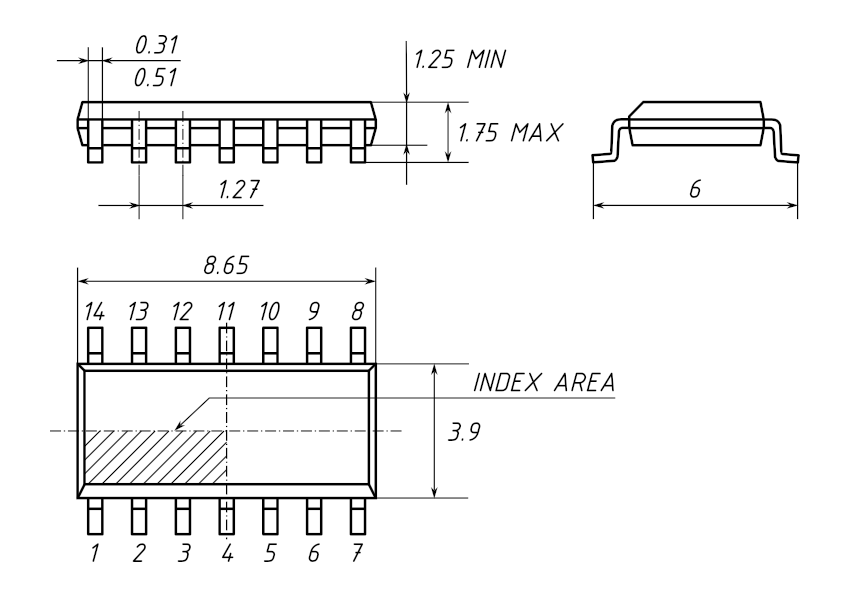

SOIC-14 (JEDEC MS-012, variation AB)

VendorPart number / Specifications
MicrochipATTINY1624-SSF
MicrochipATTINY1624-SSFR
MicrochipATTINY1624-SSU
MicrochipATTINY1624-SSUR

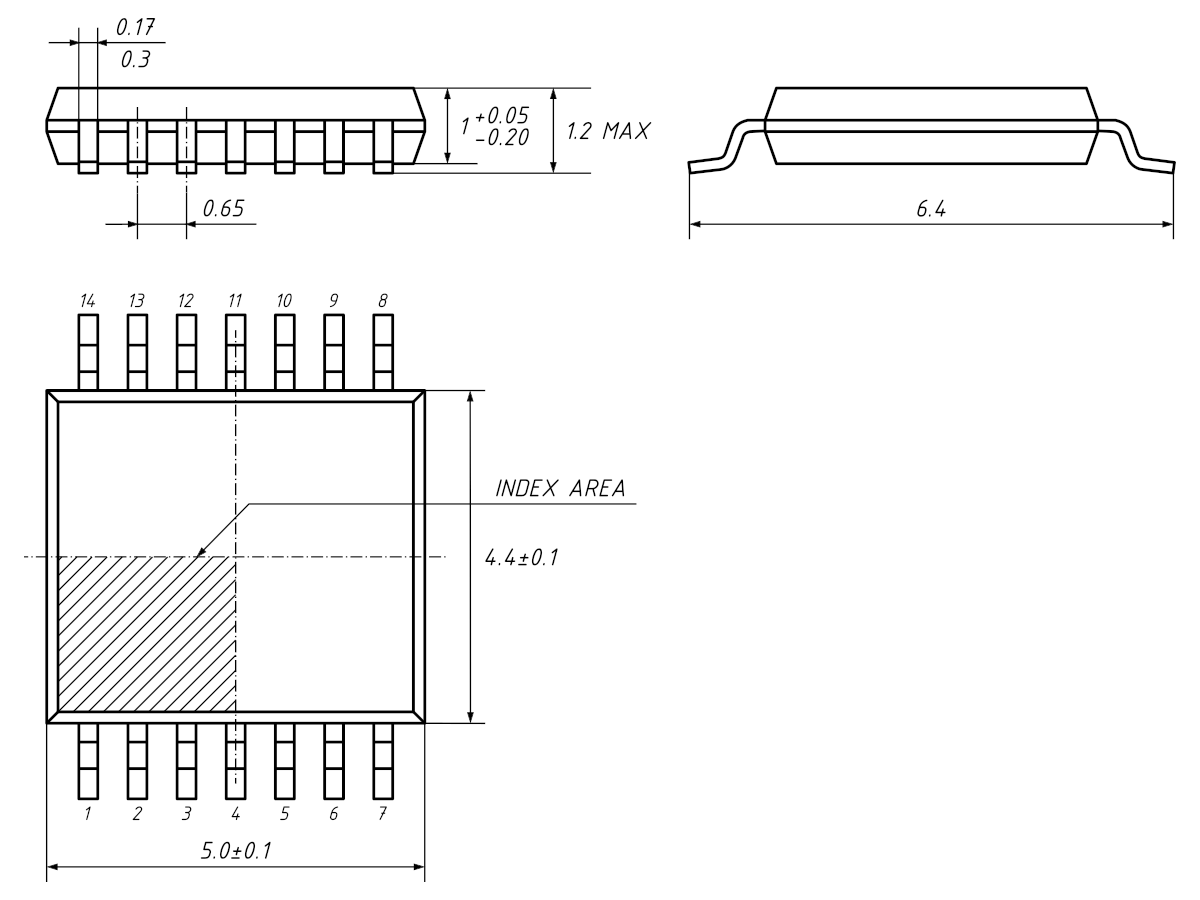

TSSOP-14 (JEDEC MO-153)

VendorPart number / Specifications
MicrochipATTINY1624-XF
MicrochipATTINY1624-XFR
MicrochipATTINY1624-XU
MicrochipATTINY1624-XUR
