Category:
Name:ATtiny426
Short description:8-bit AVR Microcontroller

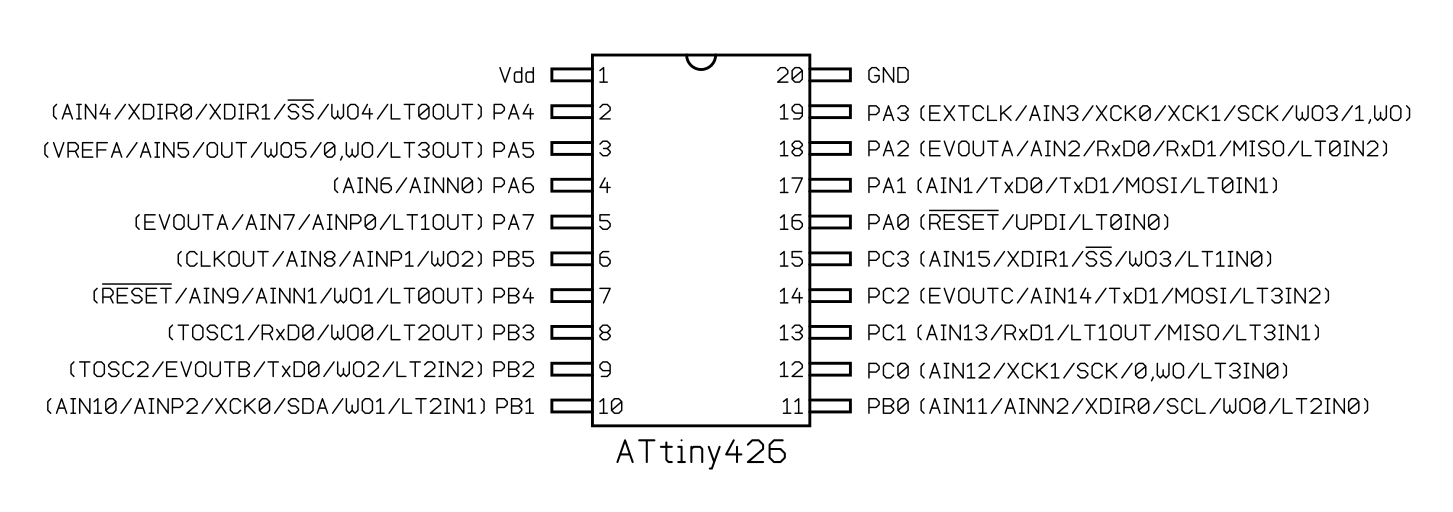

Symbol:

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATTINY426-SF
MicrochipATTINY426-SFR
MicrochipATTINY426-SU
MicrochipATTINY426-SUR

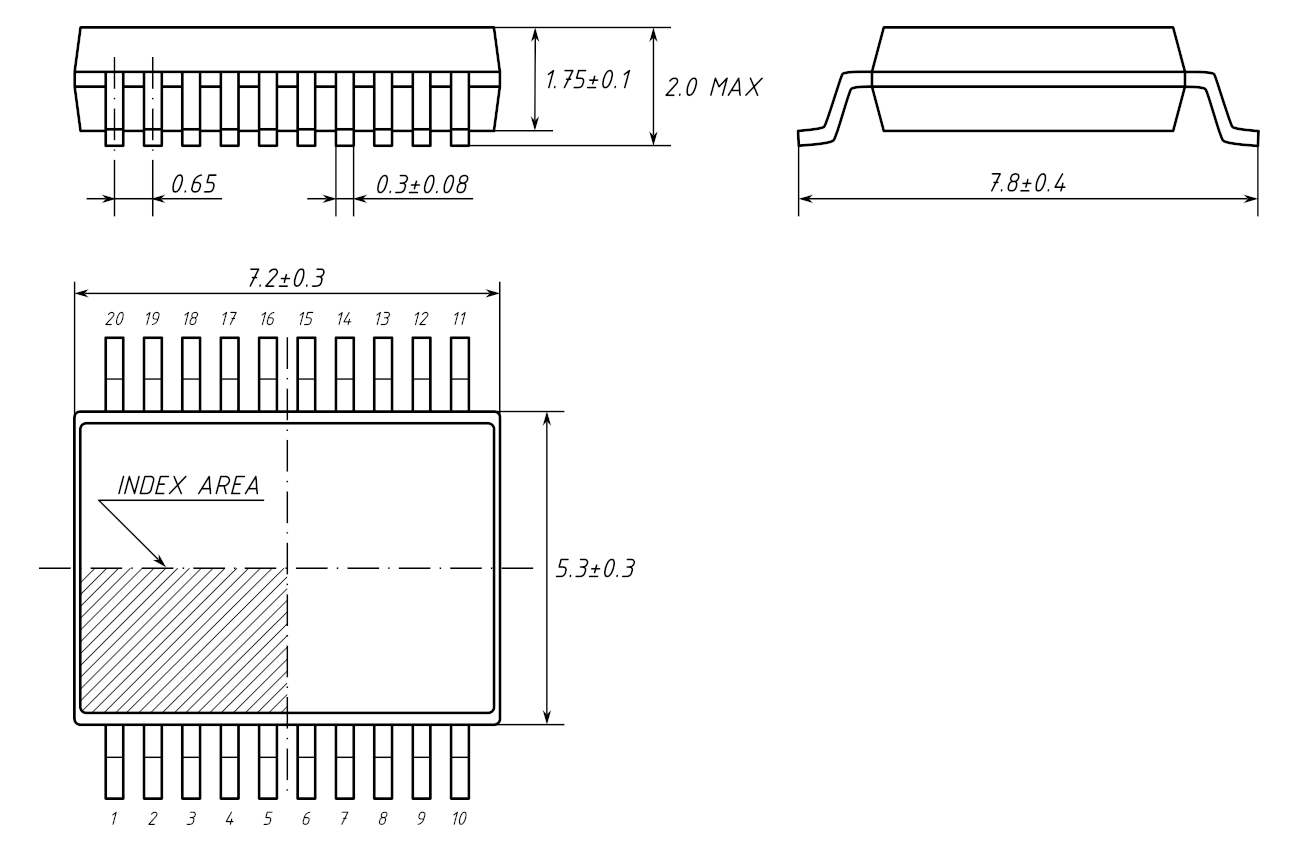

SSOP-20 (JEDEC MO-150, variation AE)

VendorPart number / Specifications
MicrochipATTINY426-XF
MicrochipATTINY426-XFR
MicrochipATTINY426-XU
MicrochipATTINY426-XUR
