Category:
Name:ATtiny1626
Short description:8-bit AVR Microcontroller

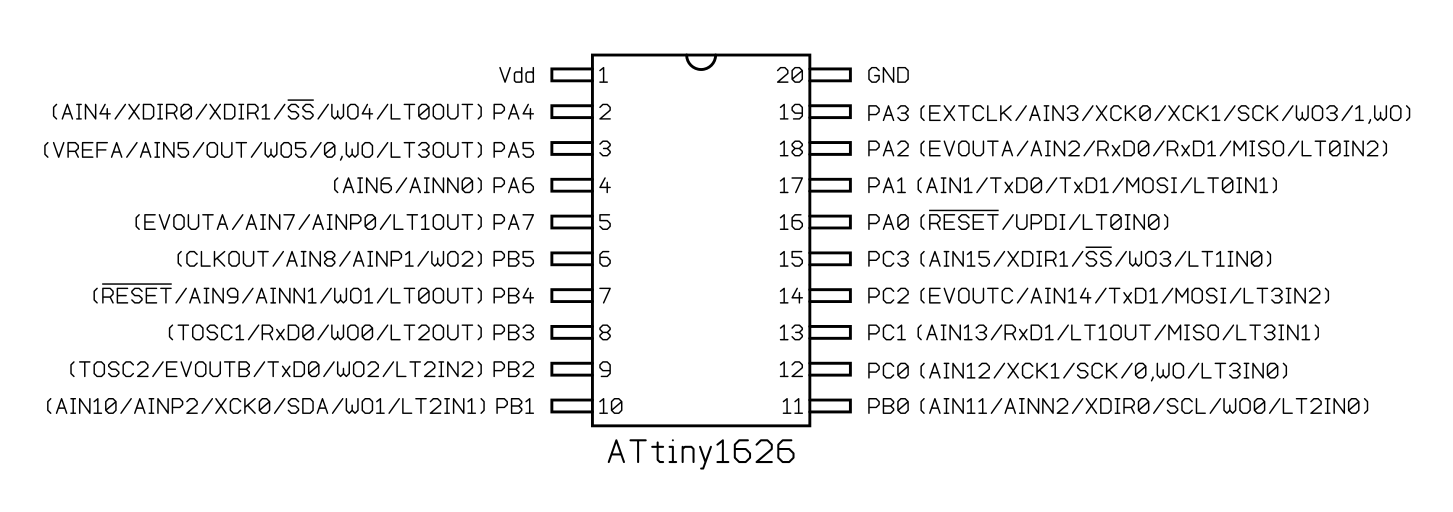

Symbol:

SOP-20 (JEDEC MS-013, Variation AC)

VendorPart number / Specifications
MicrochipATTINY1626-SF
MicrochipATTINY1626-SFR
MicrochipATTINY1626-SU
MicrochipATTINY1626-SUR

SSOP-20 (JEDEC MO-150, variation AE)

VendorPart number / Specifications
MicrochipATTINY1626-XF
MicrochipATTINY1626-XFR
MicrochipATTINY1626-XU
MicrochipATTINY1626-XUR
