Category:
Name:ATmega16L
Short description:8-bit AVR Microcontroller

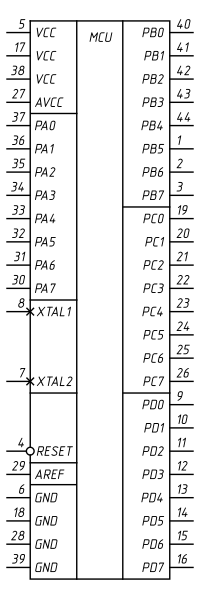

Symbol:
Pinout: Style: GOST

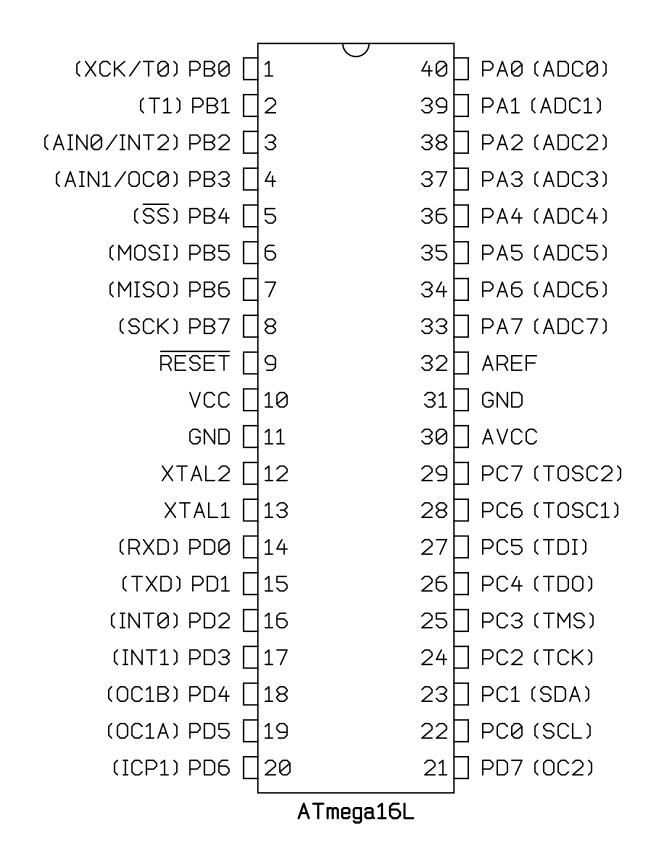

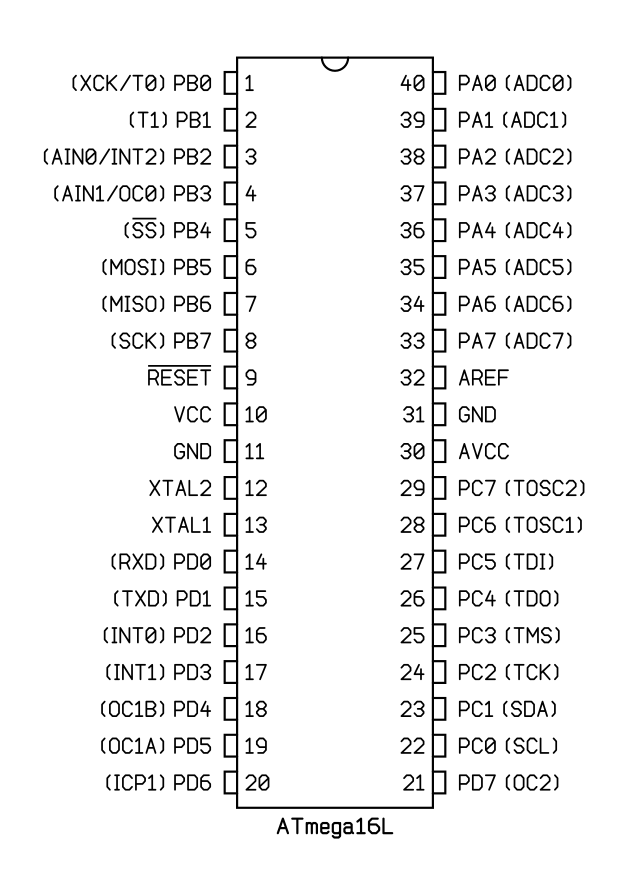

PDIP-40

VendorPart number / Specifications
AtmelATmega16L-8PU

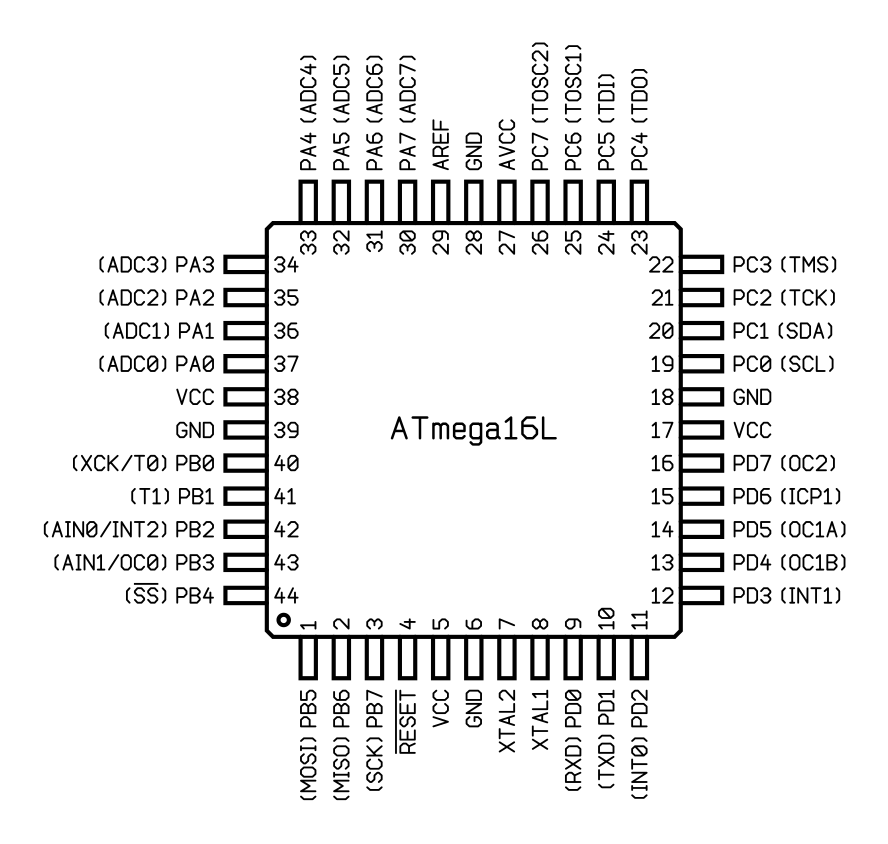

TQFP-44 (JEDEC MS-026-ACB)

VendorPart number / Specifications
AtmelATmega16L-8AU
