Category:
Name:ATmega48PB
Short description:8-bit AVR Microcontroller

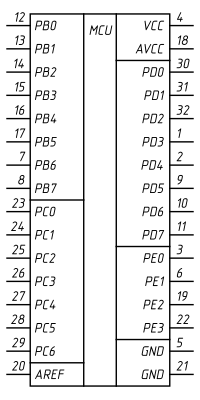

Symbol:

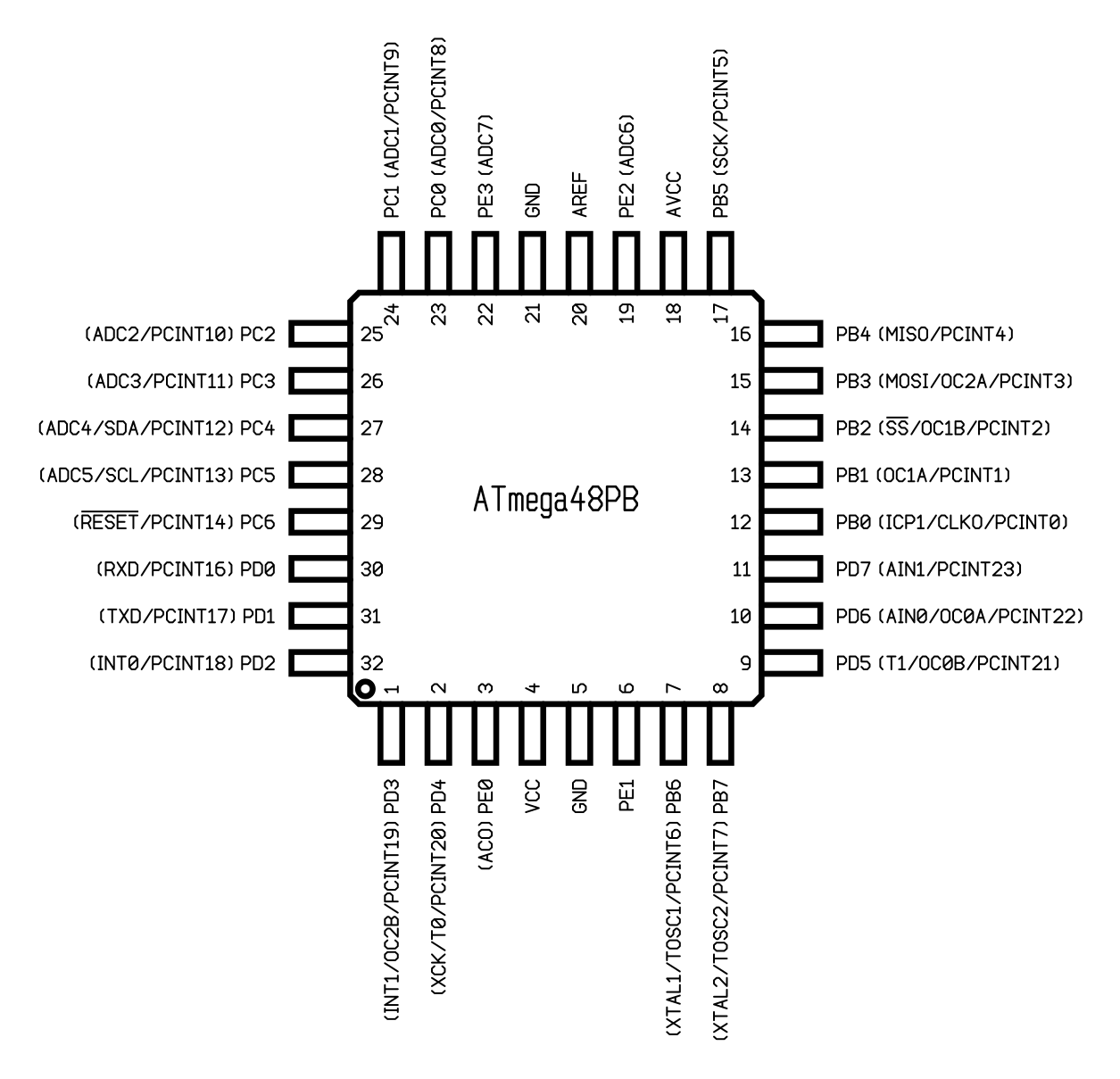

Pinout: Default Style: GOST

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
MicrochipATmega48PB-AN
MicrochipATmega48PB-ANR
MicrochipATmega48PB-AU
MicrochipATmega48PB-AUR
