Category:
Name:ATmega328PB
Short description:8-bit AVR Microcontroller

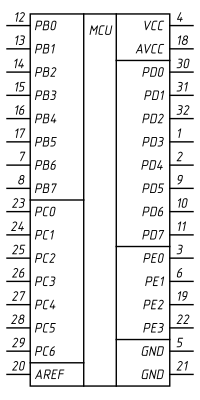

Symbol:

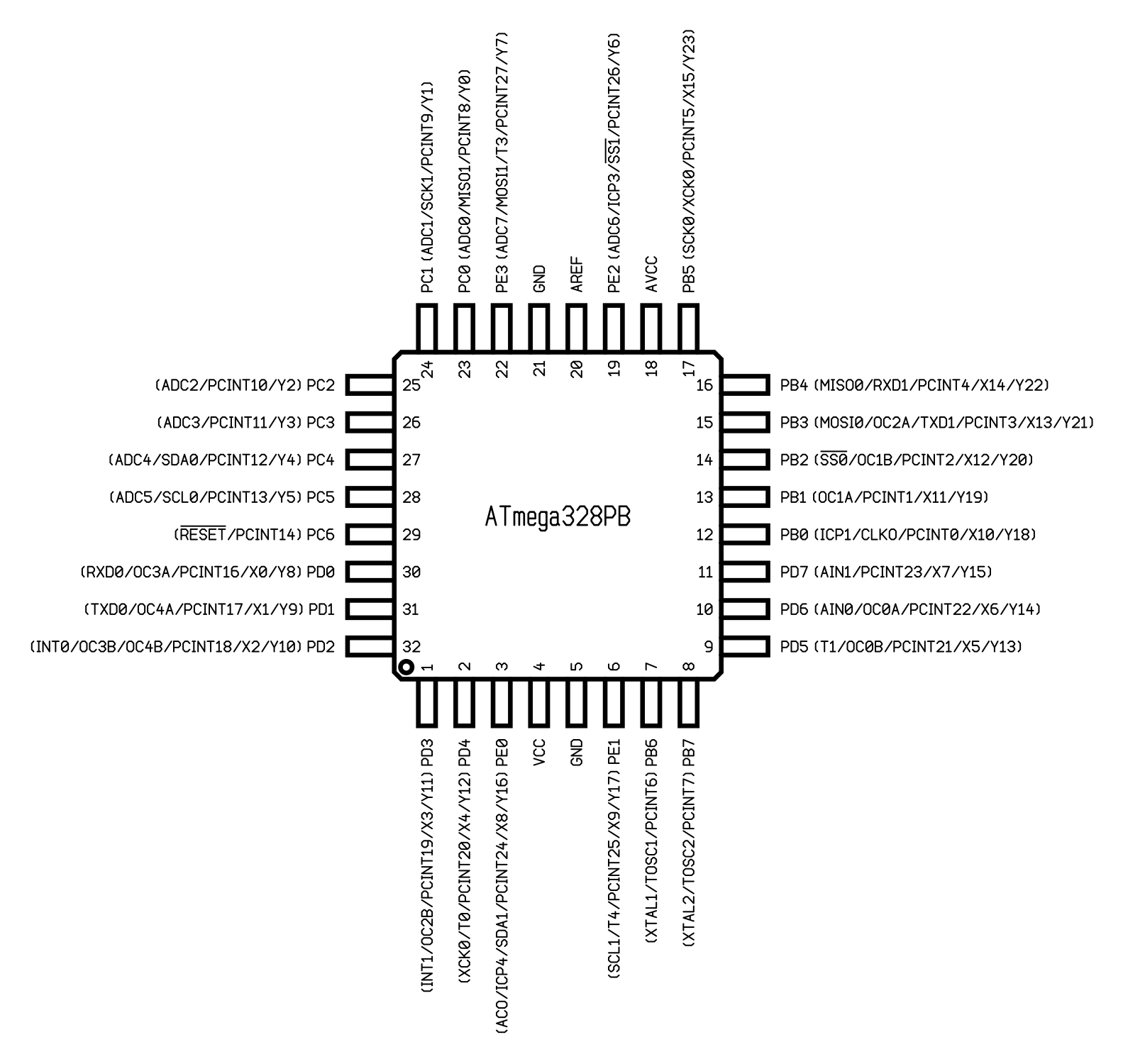

Pinout: Default Style: GOST

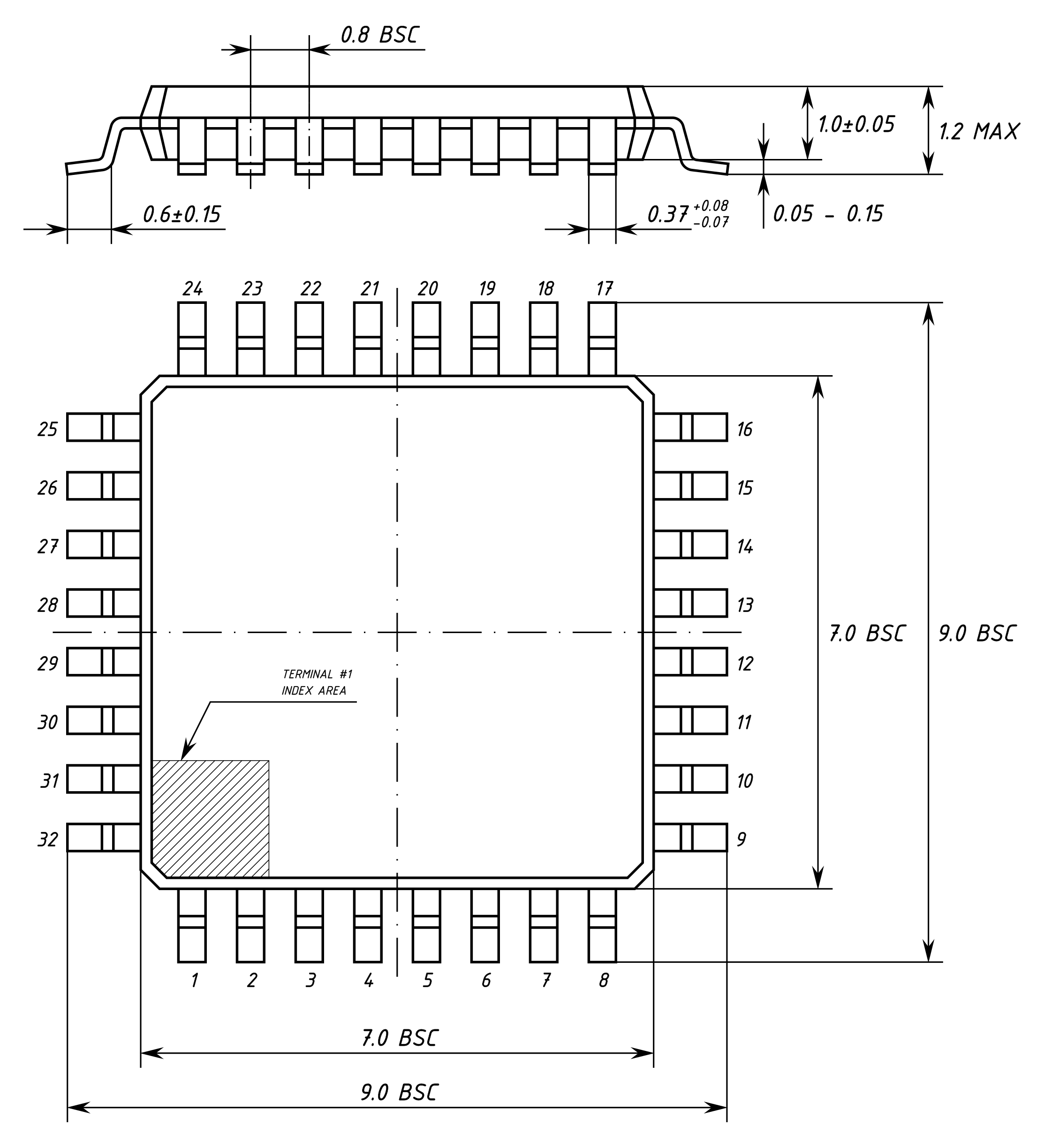

TQFP-32 (JEDEC MS-026-ABA)

VendorPart number / Specifications
MicrochipATmega328PB-AN
MicrochipATmega328PB-ANR
MicrochipATmega328PB-AU
MicrochipATmega328PB-AUR
