Category:
Name:ATmega6490
Short description:8-bit AVR Microcontroller

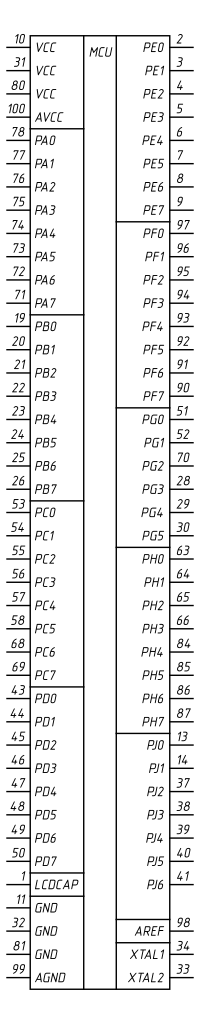

Symbol:

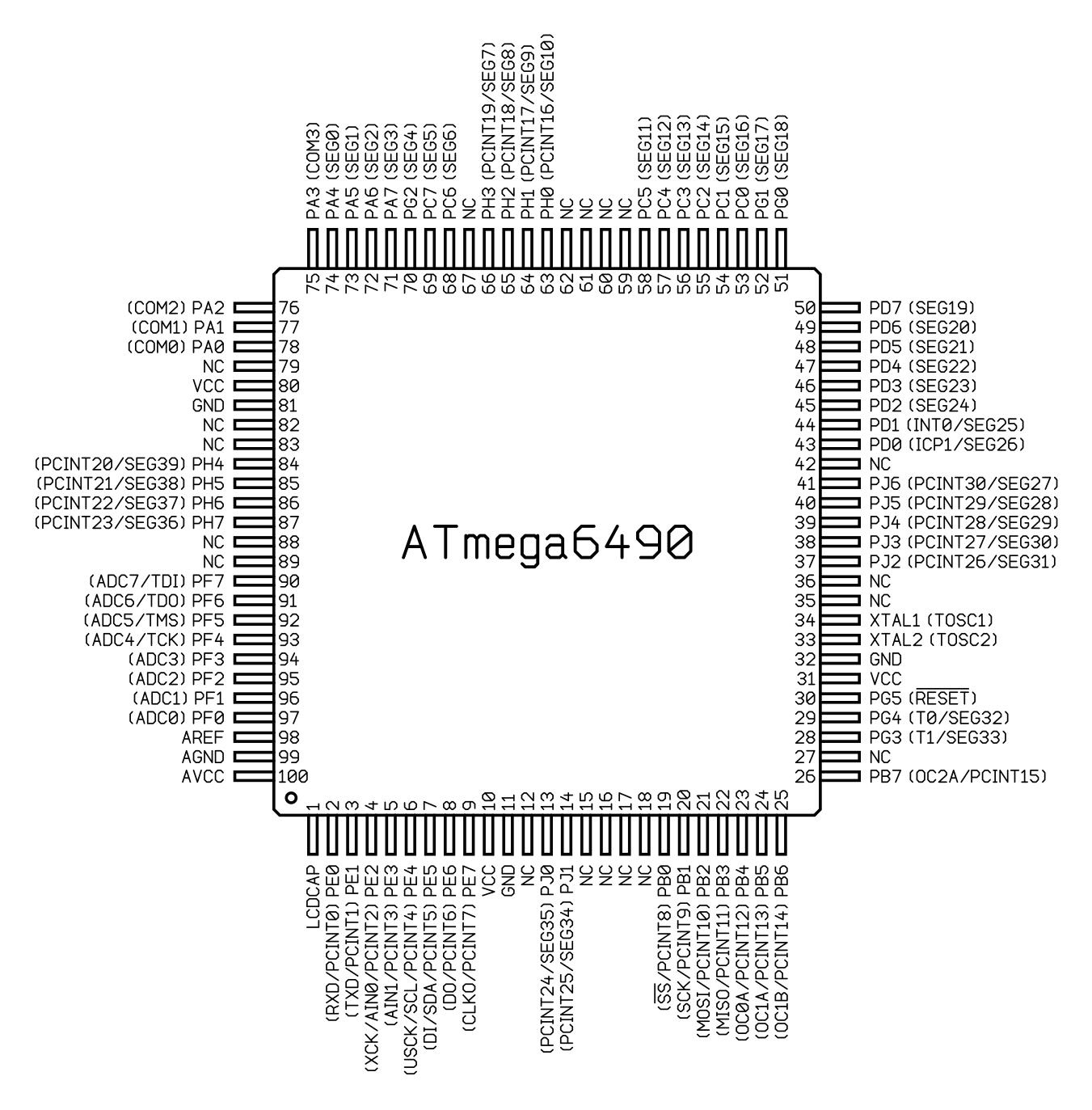

Pinout: Default Style: GOST

TQFP-100 (JEDEC MS-026-AED)

VendorPart number / Specifications
AtmelATmega6490-16AU
AtmelATmega6490-16AUR
