Category:
Name:ATmega329P
Short description:8-bit AVR Microcontroller

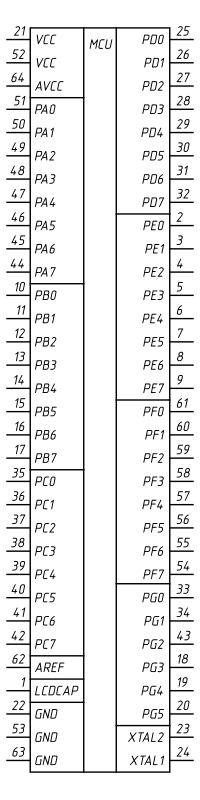

Symbol:

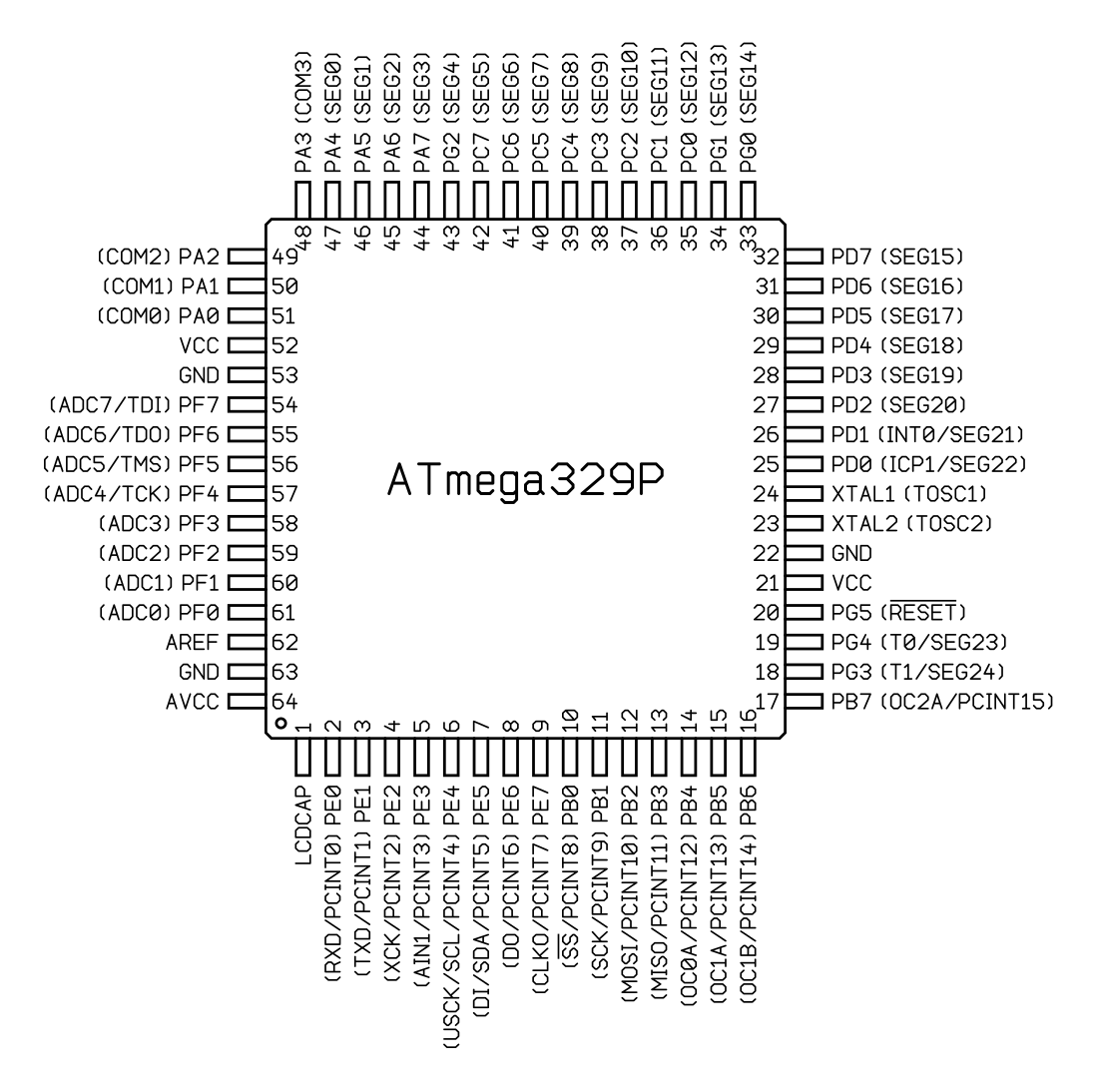

Pinout: Default Style: GOST

TQFP-64 (JEDEC MS-026-AEB)

VendorPart number / Specifications
AtmelATmega329P-20AN
AtmelATmega329P-20ANR
AtmelATmega329P-20AU
AtmelATmega329P-20AUR
