Category:
Name:ATmega809
Short description:8-bit AVR Microcontroller

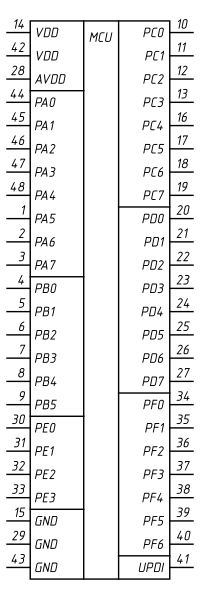

Symbol:

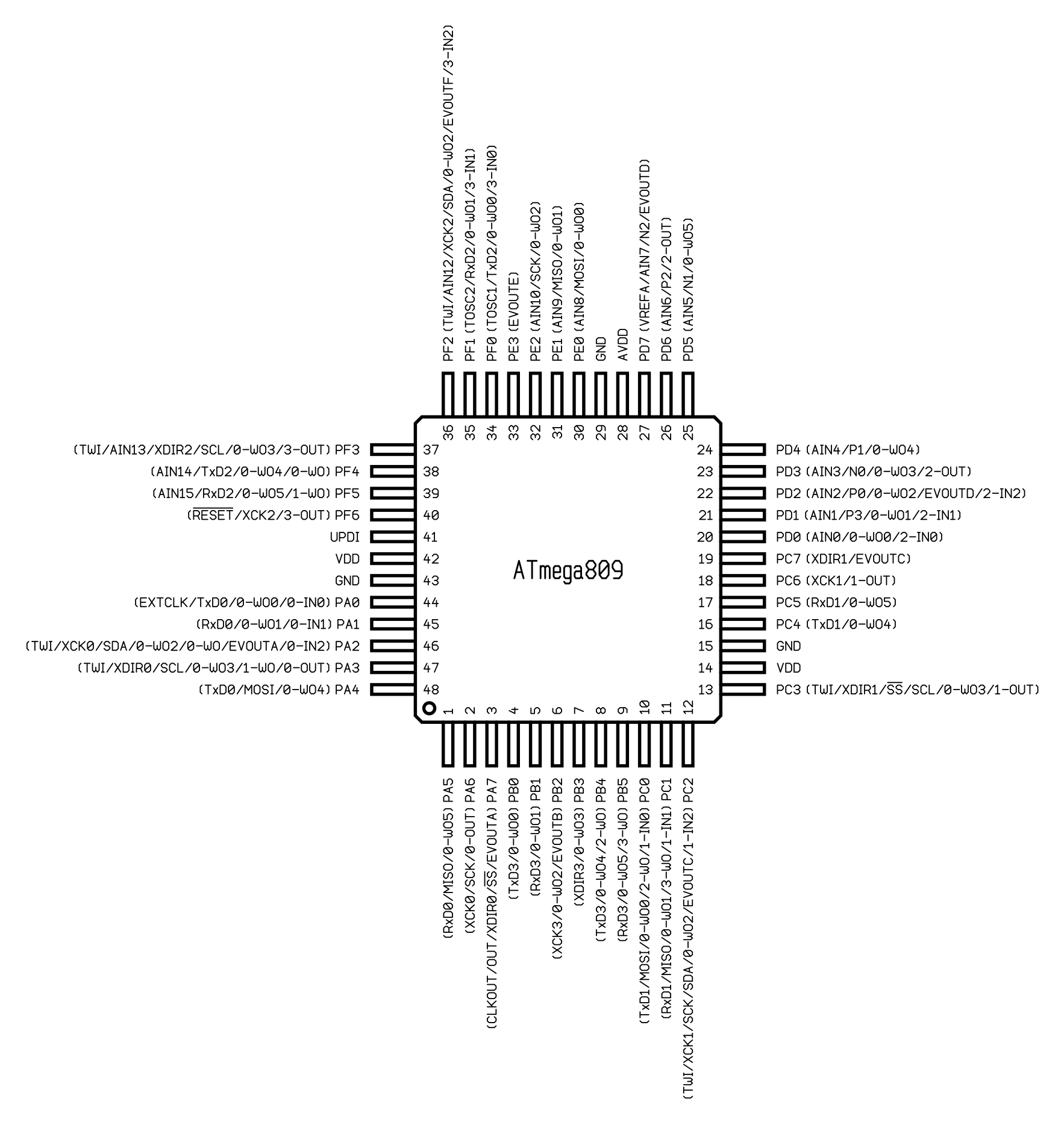

Pinout: Default Style: GOST

TQFP-48 (JEDEC MS-026-ABC)

VendorPart number / Specifications
MicrochipATmega809-AF
MicrochipATmega809-AFR
MicrochipATmega809-AU
MicrochipATmega809-AUR
