Category:
Name:ATmega1609
Short description:8-bit AVR Microcontroller

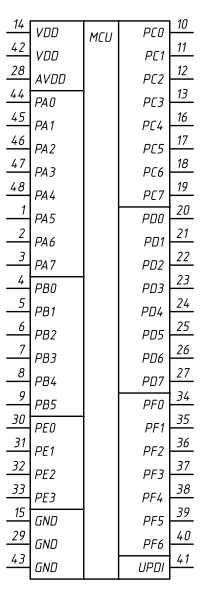

Symbol:

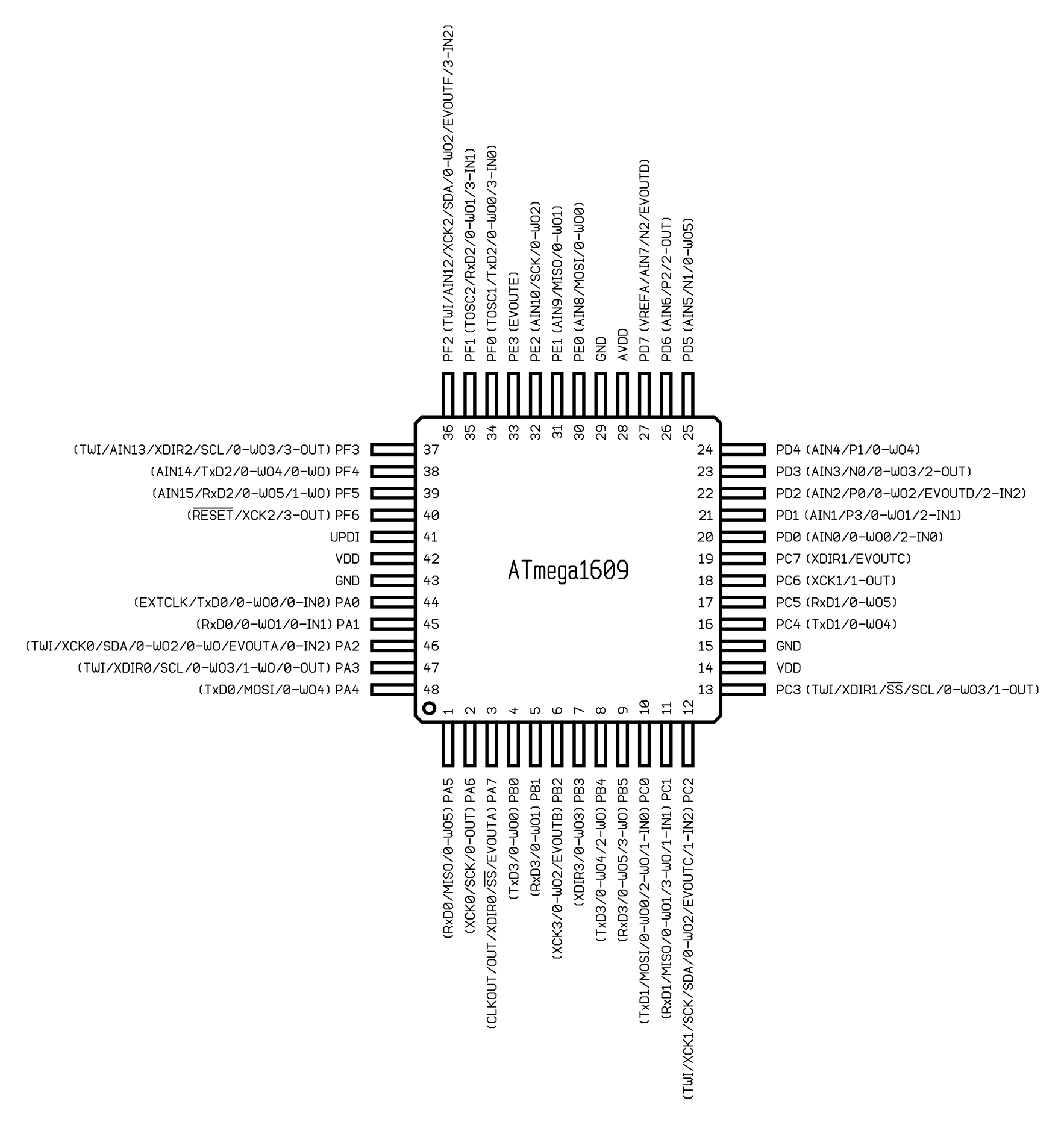

Pinout: Default Style: GOST

TQFP-48 (JEDEC MS-026-ABC)

VendorPart number / Specifications
MicrochipATmega1609-AF
MicrochipATmega1609-AFR
MicrochipATmega1609-AU
MicrochipATmega1609-AUR
