Category:
Name:STM32F042K4
Short description:32-bit microcontroller

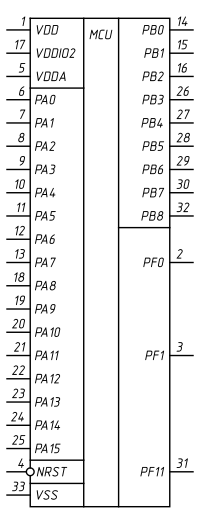

Symbol:
Pinout: Default Style: GOST

UQFN-32 (5x5, 0.5 pitch, TE, T1)

VendorPart number / Specifications
STMicroelectronicsSTM32F042K4U6
