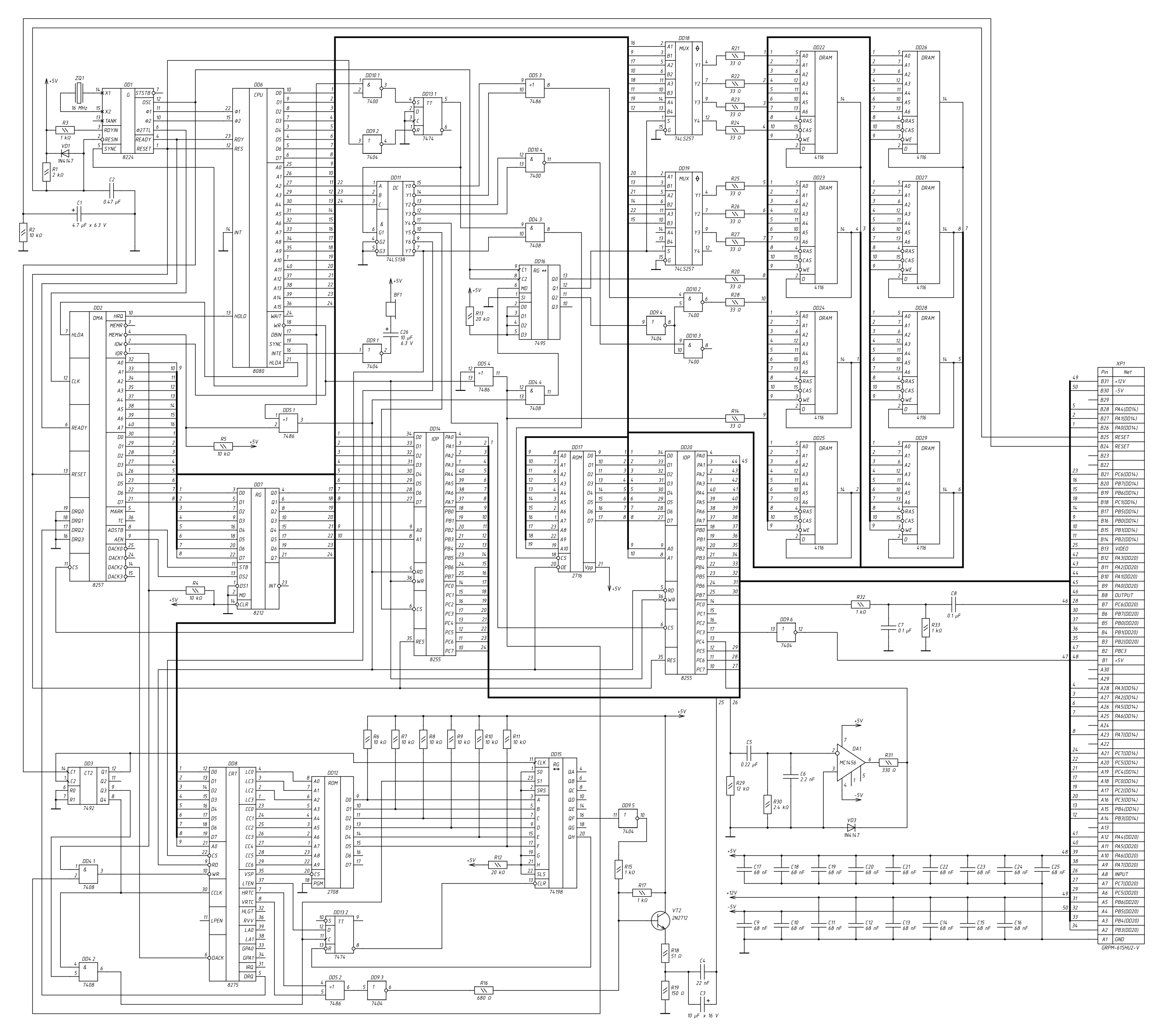

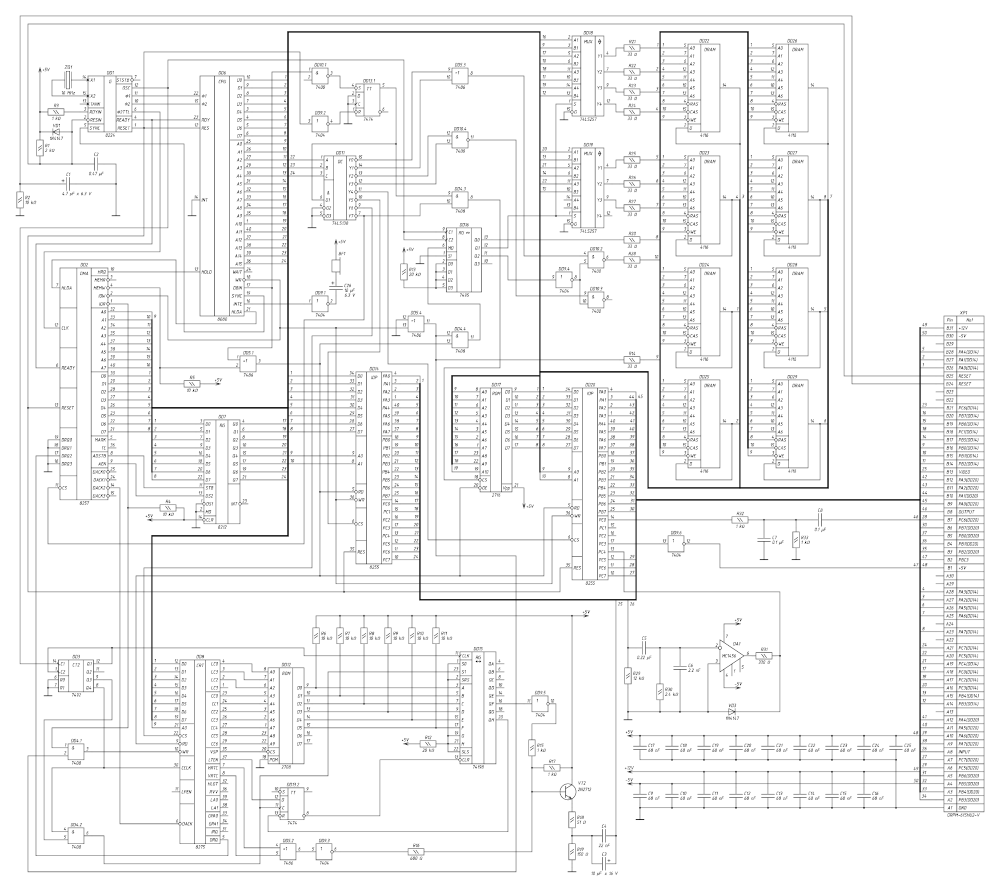

Welcome to Pulsar CAD - cloud based platform for creating high quality electronic circuit diagrams. Design, collaborate and share your ideas with ease.
Pulsar CAD has a constantly growing component library and receives new features regularly. PCB design is on the way. In addition, we have seen demand for a mobile version of the application and pleased to announce the development of an Android native client application for Pulsar CAD. It won't be long before you can collaborate on your projects in real time - stay tuned!
Component Library News
Number of electronic parts in the library:
64531
AS1206MKX7R0BB104
Today
100 nF multilayer ceramic capacitor, X7R, 100 V, 20%, flexible termination, automotive
AS1206MFX7R0BB104
Today
100 nF multilayer ceramic capacitor, X7R, 100 V, 20%, flexible termination, automotive
AS0805MKX7R0BB104
Today
100 nF multilayer ceramic capacitor, X7R, 100 V, 20%, flexible termination, automotive
AS0805MFX7R0BB104
Today
100 nF multilayer ceramic capacitor, X7R, 100 V, 20%, flexible termination, automotive
AS0805MKX7R0BB683
Today
68 nF multilayer ceramic capacitor, X7R, 100 V, 20%, flexible termination, automotive
