74HC00
Quad 2-input NAND gate

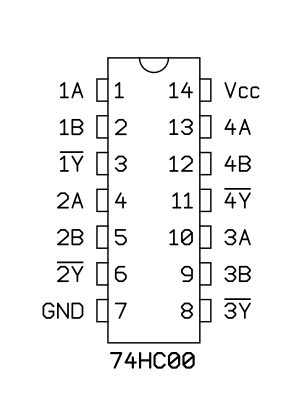

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-14
(JEDEC MS-001, Variation AA)

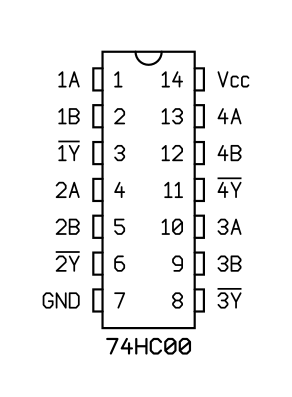

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74HC00N
Manufacturer:
Texas Instruments
Part number:
SN74HC00NE4
PDIP-14 (JEDEC MS-001, Variation AA)
package diagram
SOIC-14
(JEDEC MS-012, variation AB)
Manufacturer:
Toshiba
Part number:
74HC00D
Manufacturer:
Nexperia
Part number:
74HC00D
Manufacturer:
Diodes Incorporated
Part number:
74HC00S14-13
Manufacturer:
Texas Instruments
Part number:
SN74HC00D
Manufacturer:
Texas Instruments
Part number:
SN74HC00DR
Manufacturer:
Texas Instruments
Part number:
SN74HC00DRG4
More
Less
SOIC-14 (JEDEC MS-012, variation AB)
package diagram
TSSOP-14
(JEDEC MO-153)
Manufacturer:
Nexperia
Part number:
74HC00PW
Manufacturer:
Diodes Incorporated
Part number:
74HC00T14-13
Manufacturer:
Texas Instruments
Part number:
SN74HC00PW
Manufacturer:
Texas Instruments
Part number:
SN74HC00PWR
Manufacturer:
Texas Instruments
Part number:
SN74HC00PWRG4
More
Less
TSSOP-14 (JEDEC MO-153)
package diagram
SSOP-14
(JEDEC MO-150, variation AB)
Manufacturer:
Texas Instruments
Part number:
SN74HC00DB
Manufacturer:
Texas Instruments
Part number:
SN74HC00DBR
SSOP-14 (JEDEC MO-150, variation AB)
package diagram
SOP-14
(EIAJ-7320, 300mil)
Manufacturer:
Texas Instruments
Part number:
SN74HC00NS
Manufacturer:
Texas Instruments
Part number:
SN74HC00NSR
SOP-14 (EIAJ-7320, 300mil)
package diagram
