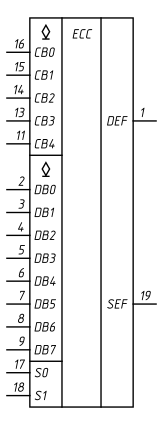

74LS637
8-bit parallel error detection and correction circuit

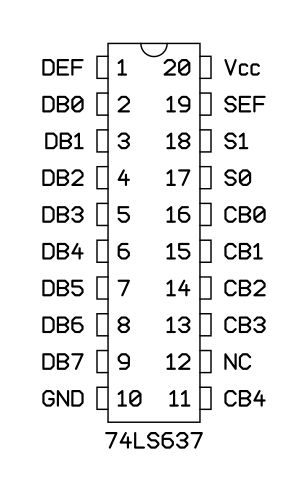

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-20
(JEDEC MS-001, Variation AD)

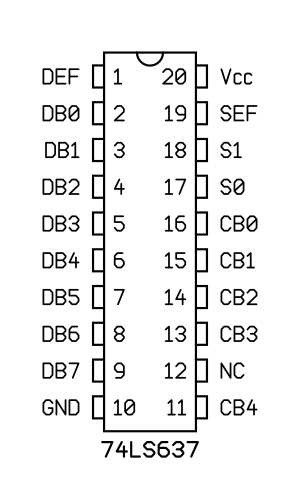

Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS637N
PDIP-20 (JEDEC MS-001, Variation AD)
package diagram
