Category:
Name:74LS638
Short description:Octal inverting bus transceiver
Symbol:

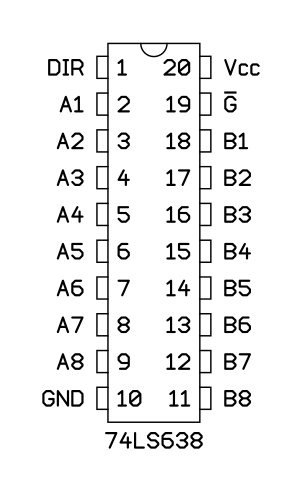

Pinout: Default Style: GOST

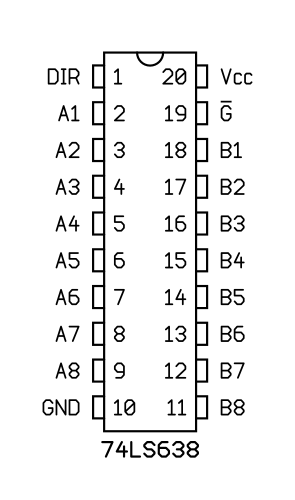

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS638N
