Name:74LS644
Short description:Octal inverting and non-inverting bus transceiver with open collector outputs
Symbol:
Pinout: Default Style: GOST

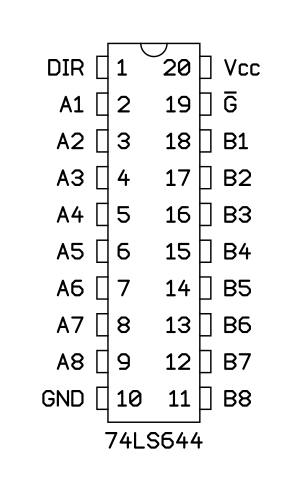

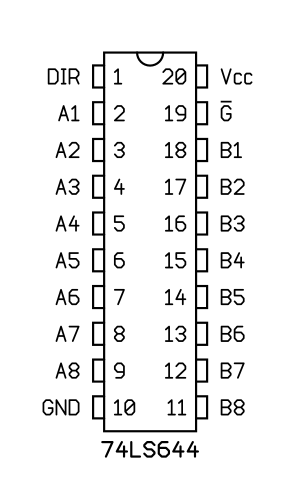

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS644N
