Name:74LS645
Short description:Octal bus transceiver with 3-state outputs

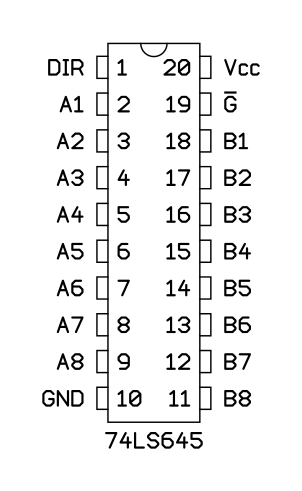

Symbol:

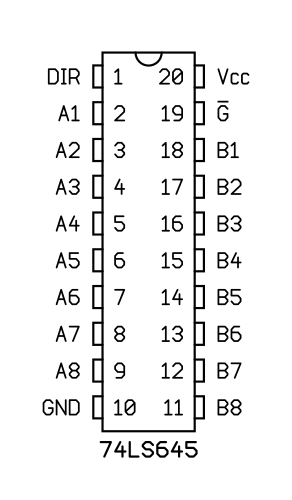

Pinout: Default Style: GOST

PDIP-20 (JEDEC MS-001, Variation AD) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS645N
