Name:74LS647
Short description:Octal bus transceiver and register with open collector outputs

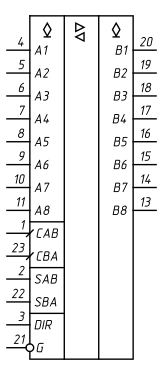

Symbol:

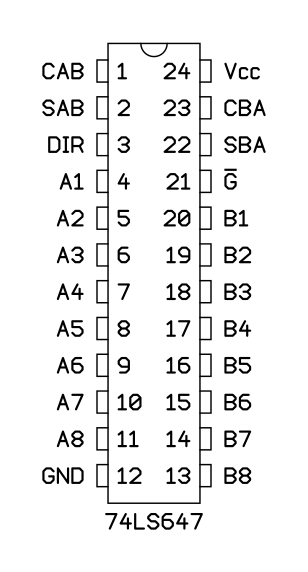

Pinout: Default Style: GOST

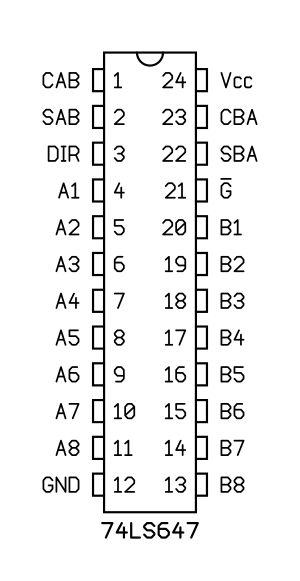

PDIP-24N (JEDEC MS-001, Variation AF) [Pinout]

VendorPart number / Specifications
Texas InstrumentsSN74LS647NT
